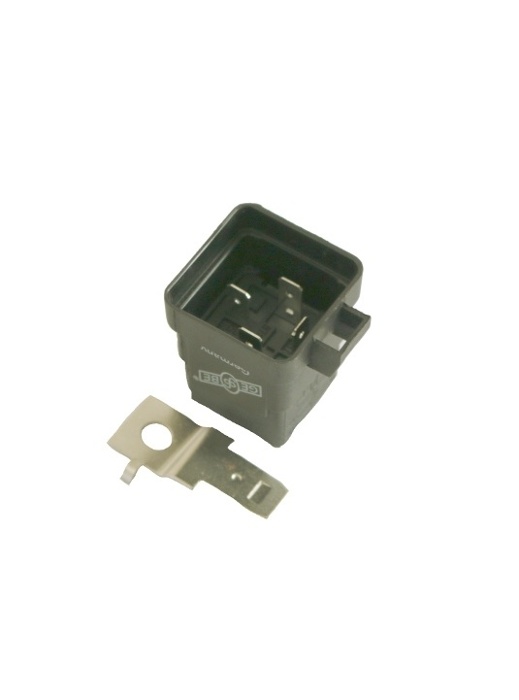

Wittrin Sealed Mini Relay 12V 4 Pin Normally Open 40A with Resistor 26-127

Wittrin Sealed Mini Relay 12V 4 Pin Normally Open 40A with Resistor 26-127

The Wittrin 26-127 is a sealed 12V 4-pin normally open mini relay rated to 40A, with a built-in suppression resistor. It suits the 26-184 sealed relay holder.

Brand: Wittrin  |  Voltage: 12V  |  Function: Normally open  |  Maximum Load: 40A  |  Part No: 26-127

Price:
NZ$ 10.50 excluding GST

NZ$ 12.08 including GST


or four payments of $3.02 with
Afterpay Payment Offer Learn More

Product Code:
SS 26-127
Purchase Qty:



A normally open relay connects terminal 30 to 87 when its coil (85/86) is energised, so a low-current switch can safely control a high-current load such as driving lamps, fans, horns or pumps. The resistor across the coil suppresses switching spikes to protect sensitive electronics, and the sealed body suits exposed locations.

Wiring: 30 to fused battery positive, 87 to the load, 86 to the switched positive and 85 to earth. For a weatherproof installation, use the 26-184 sealed relay holder (sold separately).

  • 12V 4-pin normally open sealed mini relay
  • Rated to 40A
  • Built-in suppression resistor protects electronics
  • Sealed body for exposed locations
  • Suits the 26-184 sealed relay holder
  • Brand: Wittrin
SpecificationValue
BrandWittrin
TypeMini relay, sealed
Voltage12V
Pins4
FunctionNormally open
Maximum Load40A
ProtectionResistor
Suits Holder26-184
Part Number26-127
