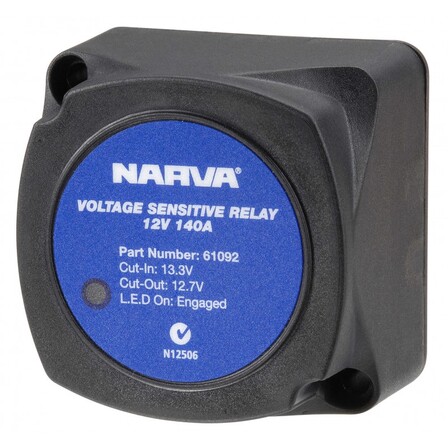

The Narva 12V 140A voltage sensitive relay (VSR) — a single-sensing, microprocessor-controlled relay that automatically connects and disconnects a second battery or circuit at preset voltages. Ideal for dual-battery systems.

Voltage: 12V | Current: 140A continuous / 160A peak | Cut-in: 13.3V | Cut-out: 12.7V (5s delay) | Rating: IP65

Price:

NZ$ 129.90 excluding GST

NZ$ 149.39 including GST

or four payments of $37.35 with
Learn More

Product Code:

NA 61092BL

Information
Features
Specifications

A voltage sensitive relay that automatically connects a circuit or auxiliary battery once the source voltage rises to the cut-in level (13.3V) — i.e. once the vehicle is charging — and disconnects it when voltage drops to 12.7V, protecting the start battery from being flattened. The 5-second cut-out delay prevents nuisance disconnection during momentary voltage dips.

Microprocessor controlled, with built-in surge protection, an LED status indicator and silver-tipped contacts for durability. The weatherproof IP65 body suits surface or firewall mounting. Rated 140A continuous (160A peak for 60 seconds) at 12V. A 150A fuse and minimum 16mm² cable are recommended; terminal torque 6.5 N·m.

12V single-sense voltage sensitive relay for dual-battery systems
140A continuous / 160A peak (60s) at 12V
Cut-in 13.3V, cut-out 12.7V with 5-second delay
Microprocessor controlled; built-in surge protection
LED status indicator; silver-tipped contacts
Weatherproof IP65 body — surface/firewall mount
Recommended 150A fuse, minimum 16mm² cable

Specification	Value
Voltage	12V
Continuous Current	140A
Peak Current	160A (60s)
Cut-in Voltage	13.3V
Cut-out Voltage	12.7V (5s delay)
Control	Microprocessor (parallel charge)
Current Draw	0.25A charging / 5mA standing
Ingress Rating	IP65
Recommended Fuse	150A
Min Cable	16mm²
