Ultima MK3 215 LED Driving Light Kit Black Hybrid Beam

Ultima MK3 215 LED Driving Light Kit Black Hybrid Beam

The Narva Ultima MK3 215 LED driving light kit — a plug-and-play pair of 215mm hybrid-beam lamps in a black finish, with wiring harness included. The hybrid beam combines width and distance, delivering up to 18,092 effective lumens per lamp (19,012 in boost) and a beam reaching up to 1213m.

Model: Ultima MK3 215 (kit/pair)  |  Beam: Hybrid  |  Output: 18,092 lm/lamp (19,012 boost)  |  Distance: Up to 1213m  |  Rating: IP68 & IP69K

Price:
NZ$ 2,276.54 excluding GST

NZ$ 2,618.02 including GST


or four payments of $654.51 with
Afterpay Payment Offer Learn More

Product Code:
NA 71744
Quantity In Stock
Currently Out of Stock — But We Can Get It For You! Call us on (03) 548 9014 and we'll arrange a backorder — most parts can be sourced quickly.

The flagship of Narva's Ultima MK3 range, supplied as a plug-and-play twin kit with wiring harness. The upgraded hybrid beam pattern delivers a leading combination of width and distance — up to 20% brighter than the MK2 — with 18,092 effective lumens per lamp, rising to 19,012 in boost mode.

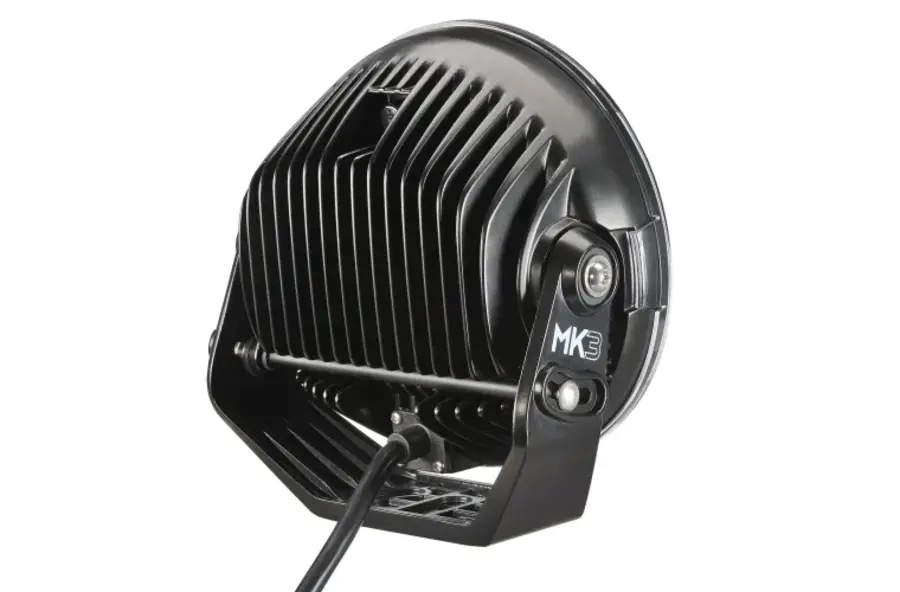

Built around a single-piece pressure die-cast housing with a virtually unbreakable, UV-resistant hard-coated polycarbonate lens and lens protector, the Ultima MK3 is fully sealed to IP68 and IP69K and fitted with an overmoulded Deutsch® connector on a 500mm flying lead. The broad, penetrating 5700K white light gives clear vision with no dark or hot spots, and the lamps are compatible with the Ultima Connect+ Controller for an additional ~10% output and full control over beam shape in boost mode. Operating range −40°C to +65°C, backed by Narva's Lifetime No Fault Warranty. Customise the look with satin or black bezels and a choice of seven colour trims. This kit is the black-bezel hybrid-beam pair.

  • 215mm hybrid-beam driving lights — supplied as a plug-and-play pair with harness
  • 18,092 effective lumens per lamp (19,012 in boost)
  • Beam distance up to 1213m
  • 5700K broad white light — no dark or hot spots
  • IP68 & IP69K fully sealed; pressure die-cast housing
  • UV-resistant hard-coated polycarbonate lens + protector
  • Overmoulded Deutsch® connector, 500mm flying lead
  • Ultima Connect+ Controller compatible (boost mode)
  • Operating range −40°C to +65°C
  • Black bezel; 7 colour-trim options
  • Narva Lifetime No Fault Warranty
SpecificationValue
ModelUltima MK3 215
SuppliedKit — pair with wiring harness
Beam PatternHybrid
Effective Lumens/Lamp18,092 lm (19,012 lm boost)
Beam DistanceUp to 1213m
Colour Temp5700K
Ingress RatingIP68 & IP69K
HousingSingle-piece pressure die-cast
ConnectorOvermoulded Deutsch®, 500mm flying lead
Operating Temp−40°C to +65°C
WarrantyLifetime No Fault
