Push Button Switch 10A 19mm Latching On/Off N/O & N/C

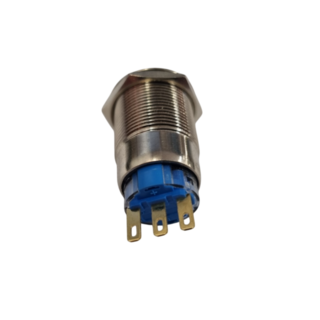

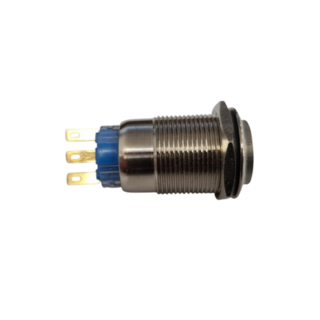

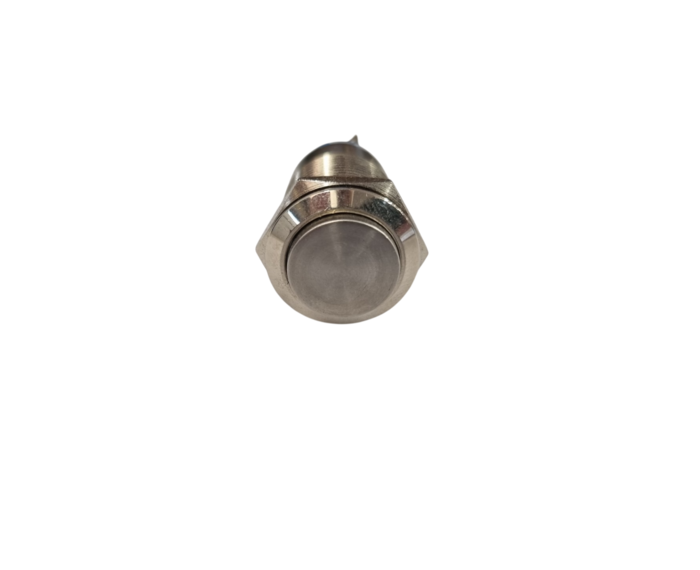

Push Button Switch 10A 19mm Latching On/Off N/O & N/C

19mm latching push button switch rated 10A — Latching on/off action with higher 10A current rating for auxiliary switching in vehicles, marine craft, and equipment panels.

Part No: 51-SW19MM-LATCH  |  Rating: 10A  |  Mount: 19mm  |  Action: Latching (ON/OFF N/O & N/C)

Price:
NZ$ 16.50 excluding GST

NZ$ 18.98 including GST


or four payments of $4.75 with
Afterpay Payment Offer Learn More

Product Code:
51-SW19MM-LATCH
Purchase Qty:



This 19mm push button switch is rated at 10A, making it suitable for higher-current auxiliary circuits. The latching ON/OFF action is ideal for maintained on/off switching of lights, fans, pumps, and other loads. The 19mm format provides a solid, easy-to-operate button.

Both NO and NC contacts are provided, allowing flexible wiring for different control configurations. Mounts through a 19mm panel hole and secures with the supplied lock nut. Suitable for 12V and 24V DC systems.

  • Latching action — push-to-lock, push-to-release
  • 10A current rating — suitable for higher-current loads
  • 19mm thread mount
  • Normally Open and Normally Closed contacts
  • Metal body — robust construction
  • Suits 12V and 24V DC systems
SpecificationValue
Current Rating10A
Mounting Size19mm
ActionLatching (ON / OFF)
ContactsN/O and N/C
Voltage12/24VDC
