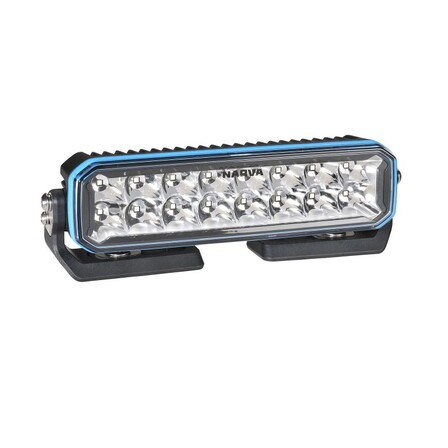

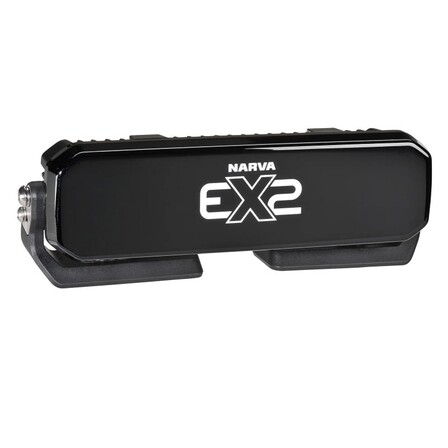

Lightbar 10INCH EX2 Double Row

Lightbar 10INCH EX2 Double Row

The Narva EX2 10" double-row LED light bar — a hybrid-beam bar producing 5,680 raw (4,560 effective) lumens, with revolutionary internal switching that eliminates the need for a wiring harness.

Size: 10" double row  |  Output: 5,680 raw / 4,560 effective lm  |  Distance: 407m @ 1 lux  |  Rating: IP68 & IP69K  |  Warranty: 7 years

Price:
NZ$ 392.90 excluding GST

NZ$ 451.84 including GST


or four payments of $112.96 with
Afterpay Payment Offer Learn More

Product Code:
NA 72834
Purchase Qty:



Part of Narva's EX2 range, designed with the DIY 4WD enthusiast in mind. The EX2's hybrid beam delivers outstanding width and distance with no dark or hot spots, and its patent-pending internal switching eliminates the need for a wiring harness — the easiest bar on the market to wire, with nothing to route through the firewall (a relay is required on negatively switched vehicles).

Runs 16 high-power Cree® 5W LEDs at 5700K (CRI 70), drawing 3.7A at 13.5V. Built to last: pressure die-cast aluminium housing sealed to IP68 & IP69K, hard-coated polycarbonate lens, composite mounting brackets and stainless steel hardware for extreme vibration resistance. Eight interchangeable colour trims for customisation, and backed by a 7-year No Fault warranty. Measures 271 × 94 × 76.5mm.

  • 10" double-row hybrid-beam LED light bar
  • 5,680 raw / 4,560 effective lumens
  • Beam distance 407m, width 56m (at 1 lux)
  • 16 × Cree® 5W LEDs, 5700K, CRI 70
  • Internal switching (patent pending) — no harness required
  • 9-33V, 3.7A at 13.5V; ECE R10
  • IP68 & IP69K; pressure die-cast aluminium housing
  • Hard-coated polycarbonate lens; composite brackets, stainless hardware
  • 8 interchangeable colour trims
  • 7-year No Fault warranty
SpecificationValue
Size10" double row
Raw Lumens5,680 lm
Effective Lumens4,560 lm
Beam Distance407m @ 1 lux
Beam Width56m @ 1 lux
LEDs16 × Cree® 5W
Input Voltage9-33V DC
Current Draw3.7A @ 13.5V / 1.78A @ 28V
Colour Temp5700K ±5%
CRI70
Ingress RatingIP68 & IP69K
Dimensions271 × 94 × 76.5mm
Weight1390g
Warranty7-year No Fault
