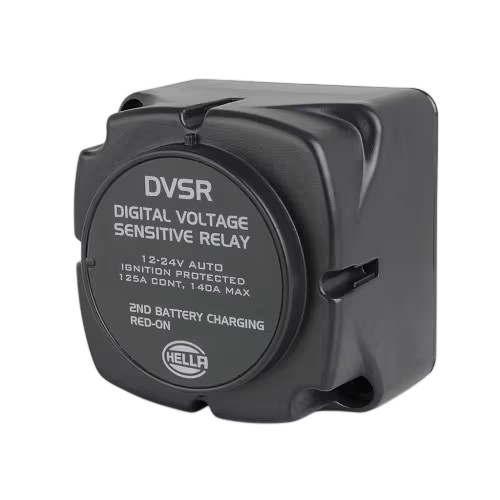

Hella Voltage Sensitive Relay 12/24V 140A Dual Battery 3099

Hella Voltage Sensitive Relay 12/24V 140A Dual Battery 3099

The Hella 3099 is a digital 12/24V voltage sensitive relay (VSR) rated to 140A continuous, for dual battery systems in boats, caravans and 4WDs.

Brand: Hella  |  Voltage: Multivolt 12/24V, auto-detecting  |  Hella Part No: 4RD 980 830-001  |  Part No: 3099

Price:
NZ$ 238.61 excluding GST

NZ$ 274.40 including GST


or four payments of $68.60 with
Afterpay Payment Offer Learn More

Product Code:
HL 3099
Purchase Qty:



The VSR keeps an auxiliary battery separate from the starting battery so accessories can't flatten it. When either battery is being charged, it connects both so they charge together. It has dual sensing, automatically detects 12 or 24V operation and draws less than 2mA (or nothing in storage mode).

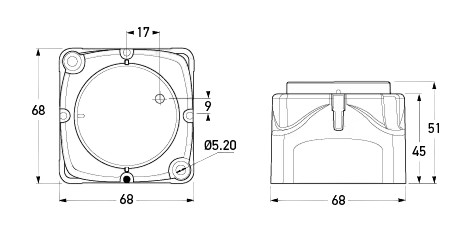

Recess or surface mount, with 2 x 6mm stud terminals. Use cable and fusing rated for the charging current between the batteries.

  • Dual battery voltage sensitive relay
  • 140A maximum continuous load
  • Automatic 12/24V detection, dual sensing
  • Very low quiescent draw (under 2mA)
  • 6mm stud terminals, recess or surface mount
  • Suits boats, caravans and 4WDs
  • Brand: Hella
SpecificationValue
BrandHella
VoltageMultivolt 12/24V, auto-detecting
Maximum Continuous Load140A
Quiescent CurrentUnder 2mA
Terminals2 x 6mm studs
MountingRecess or surface
Hella Part No4RD 980 830-001
Part Number3099

View your shopping basket or Browse other items in Vsr ( Voltage Sensitive Relay ).
