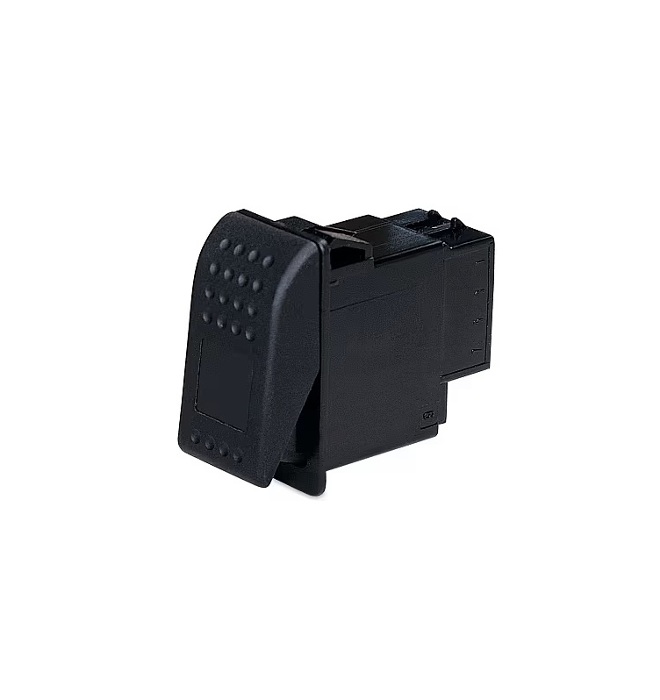

Hella Universal Rocker Switch (On)-Off-(On) Momentary Spring Return to Centre 6GM 007 832-251

The Hella 6GM 007 832-251 is a universal flush-fit (on)-off-(on) momentary spring return to centre rocker switch with location light option, rated to 16A at 12V or 8A at 24V.

Brand: Hella | Function: (On)-Off-(On) Momentary Spring Return to Centre | Maximum Load: 16A @ 12V, 8A @ 24V | Part No: 6GM 007 832-251

Price:

NZ$ 37.26 excluding GST

NZ$ 42.85 including GST

or four payments of $10.71 with
Learn More

Product Code:

HL 6GM007832251

Information
Features
Specifications

Hella universal flush-fit rocker switches suit 12V and 24V applications and cover nearly every switching type. Symbols, connectors, mounting panels and bulb holders are sold separately, so you can label and light each switch for its job. It springs back to the centre off position when released, ideal for up/down motor controls.

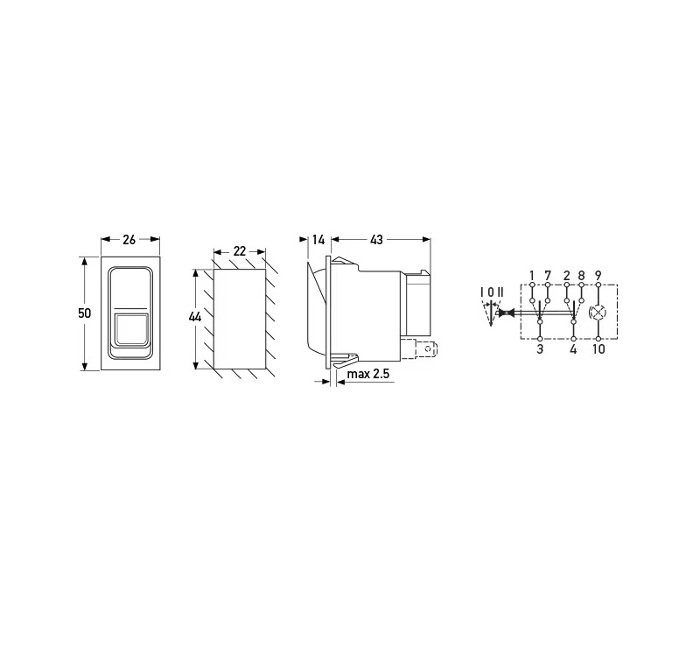

Mounts directly in a correctly sized panel opening 1-2.5mm thick, or in Hella mounting panels. The location lamp lights with the park lights, and the pilot lamp (where fitted) lights when the switch is on.

(On)-Off-(On) Momentary Spring Return to Centre rocker switch
With location light option
16A at 12V, 8A at 24V
Flush-fit, panels 1-2.5mm
Symbols, connectors and bulb holders sold separately
Brand: Hella

Specification	Value
Brand	Hella
Function	(On)-Off-(On) Momentary Spring Return to Centre
Lamp Options	Location light option
Terminals	8 (including lamp)
Maximum Load	16A @ 12V, 8A @ 24V
Mounting	Panel opening 1-2.5mm thick, or Hella mounting panels
Sold Separately	Connectors, symbols, mounts, bulb holders
Part Number	6GM 007 832-251
