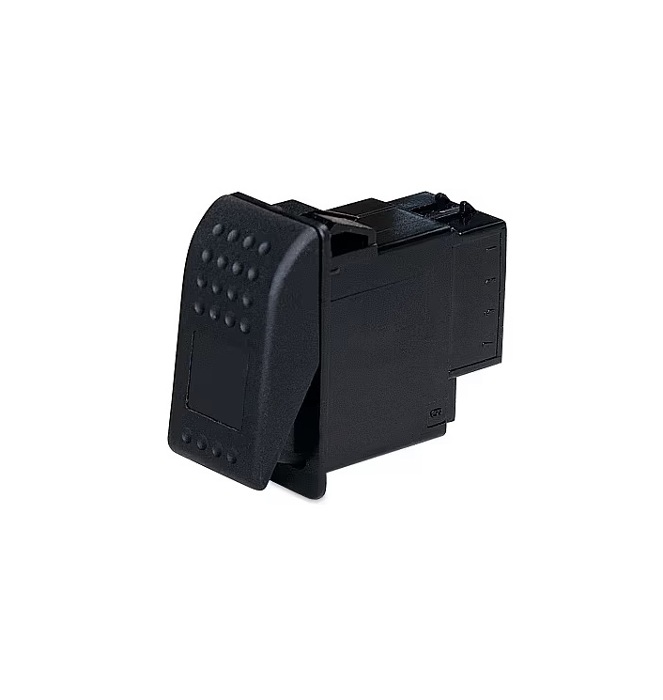

Hella Universal Rocker Switch Off-On with Blocking Mechanism 6EH 007 832-041

Hella Universal Rocker Switch Off-On with Blocking Mechanism 6EH 007 832-041

The Hella 6EH 007 832-041 is a universal flush-fit off-on rocker switch with a blocking mechanism and location and pilot light options, rated to 16A at 12V or 8A at 24V.

Brand: Hella  |  Function: Off-On with Blocking Mechanism  |  Maximum Load: 16A @ 12V, 8A @ 24V  |  Part No: 6EH 007 832-041

Price:
NZ$ 33.48 excluding GST

NZ$ 38.50 including GST


or four payments of $9.63 with
Afterpay Payment Offer Learn More

Product Code:
HL 6EH007832041
Purchase Qty:



Hella universal flush-fit rocker switches suit 12V and 24V applications and cover nearly every switching type. Symbols, connectors, mounting panels and bulb holders are sold separately, so you can label and light each switch for its job. The blocking mechanism stops the switch being turned on accidentally.

Mounts directly in a correctly sized panel opening 1-2.5mm thick, or in Hella mounting panels. The location lamp lights with the park lights, and the pilot lamp (where fitted) lights when the switch is on.

  • Off-On with Blocking Mechanism rocker switch
  • With location and pilot light options
  • 16A at 12V, 8A at 24V
  • Flush-fit, panels 1-2.5mm
  • Symbols, connectors and bulb holders sold separately
  • Brand: Hella
SpecificationValue
BrandHella
FunctionOff-On with Blocking Mechanism
Lamp OptionsLocation and pilot light options
Terminals4 (including lamp)
Maximum Load16A @ 12V, 8A @ 24V

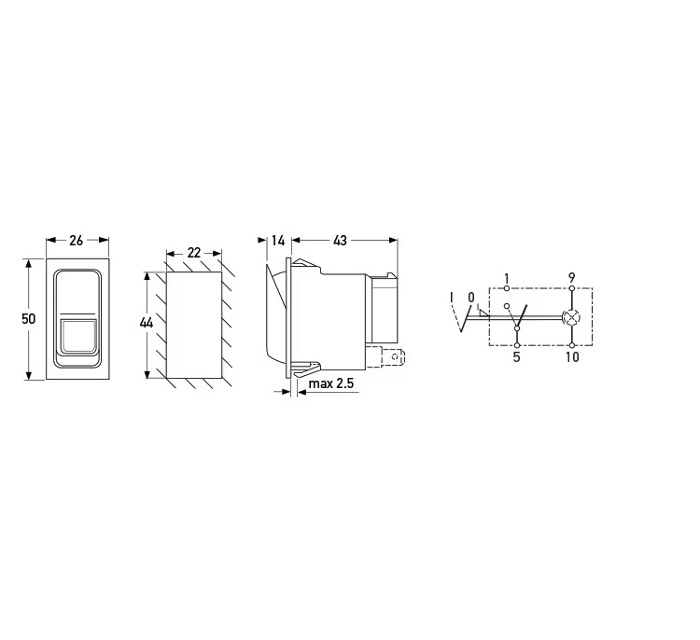

MountingPanel opening 1-2.5mm thick, or Hella mounting panels
Sold SeparatelyConnectors, symbols, mounts, bulb holders
Part Number6EH 007 832-041
