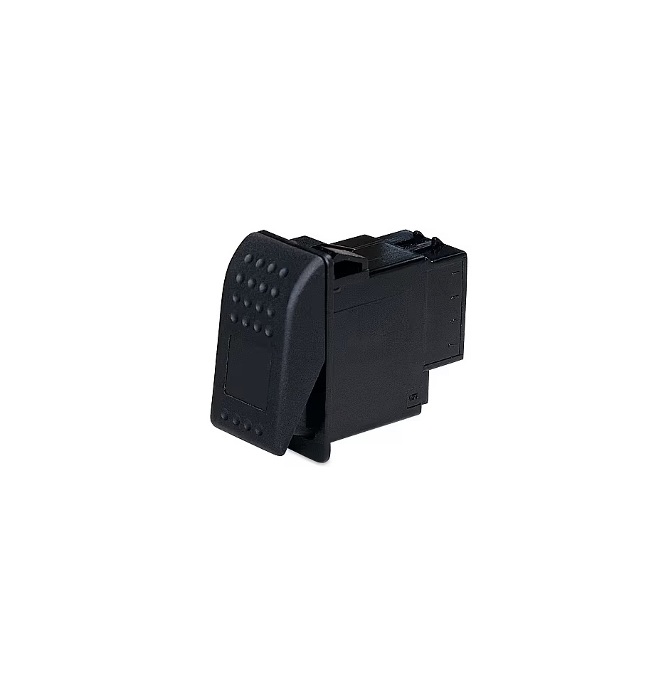

Hella Universal Rocker Switch Off-(On) Momentary Spring Return 6GM 007 832-221

Hella Universal Rocker Switch Off-(On) Momentary Spring Return 6GM 007 832-221

The Hella 6GM 007 832-221 is a universal flush-fit off-(on) momentary spring return rocker switch with lamp options, rated to 16A at 12V or 8A at 24V.

Brand: Hella  |  Function: Off-(On) Momentary Spring Return  |  Maximum Load: 16A @ 12V, 8A @ 24V  |  Part No: 6GM 007 832-221

Price:
NZ$ 32.63 excluding GST

NZ$ 37.52 including GST


or four payments of $9.38 with
Afterpay Payment Offer Learn More

Product Code:
HL 6GM007832221
Purchase Qty:



Hella universal flush-fit rocker switches suit 12V and 24V applications and cover nearly every switching type. Symbols, connectors, mounting panels and bulb holders are sold separately, so you can label and light each switch for its job. It springs back to off when released, so the circuit is only on while pressed.

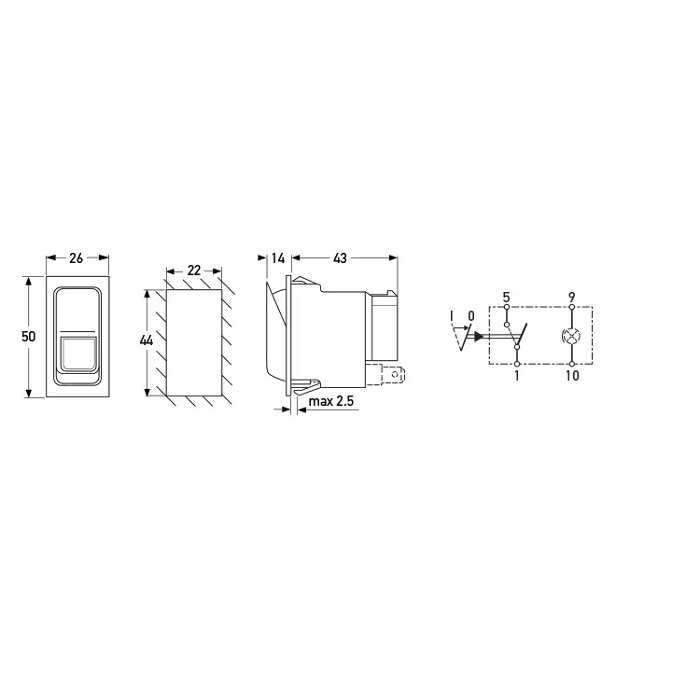

Mounts directly in a correctly sized panel opening 1-2.5mm thick, or in Hella mounting panels. The location lamp lights with the park lights, and the pilot lamp (where fitted) lights when the switch is on.

  • Off-(On) Momentary Spring Return rocker switch
  • With lamp options
  • 16A at 12V, 8A at 24V
  • Flush-fit, panels 1-2.5mm
  • Symbols, connectors and bulb holders sold separately
  • Brand: Hella
SpecificationValue
BrandHella
FunctionOff-(On) Momentary Spring Return
Lamp OptionsLamp options
Maximum Load16A @ 12V, 8A @ 24V
MountingPanel opening 1-2.5mm thick, or Hella mounting panels
Sold SeparatelyConnectors, symbols, mounts, bulb holders
Part Number6GM 007 832-221
