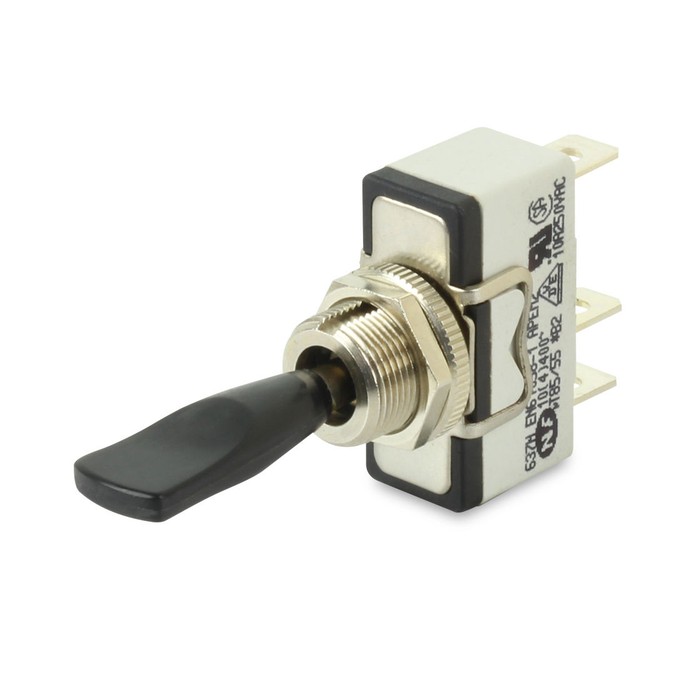

Hella Toggle Switch (On)-Off-(On) Momentary Flick Return 4460

Hella Toggle Switch (On)-Off-(On) Momentary Flick Return 4460

The Hella 4460 is a momentary (on)-off-(on) flick toggle switch with spring return to centre, rated to 15A at 12V.

Brand: Hella  |  Function: (On)-Off-(On) momentary  |  Maximum Load: 15A @ 12V, 7.5A @ 24V  |  Hella Part No: 6EH 905 361-032  |  Part No: 4460

Price:
NZ$ 38.21 excluding GST

NZ$ 43.94 including GST


or four payments of $10.99 with
Afterpay Payment Offer Learn More

Product Code:
HL 4460
Purchase Qty:



The lever springs back to the centre off position when released, so each side is on only while held. It is ideal for power aerials, winches, tilt motors and other up/down controls.

Check the mounting hole size and panel thickness before fitting, and use a relay for loads above the switch rating.

  • Momentary (on)-off-(on) flick toggle
  • Spring return to centre off
  • 15A at 12V, 7.5A at 24V
  • 3 terminals
  • 13mm mounting hole, panels up to 6mm
  • Brand: Hella
SpecificationValue
BrandHella
Function(On)-Off-(On) momentary
Maximum Load15A @ 12V, 7.5A @ 24V
Terminals3
Mounting Hole13mm
Panel ThicknessUp to 6mm
Hella Part No6EH 905 361-032
Part Number4460
