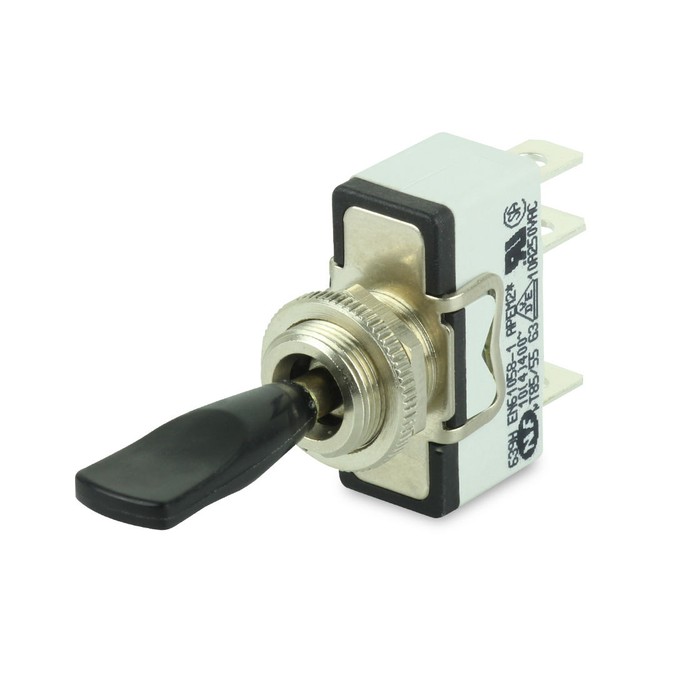

Hella Toggle Switch On-Off-On Indicator 4202

Hella Toggle Switch On-Off-On Indicator 4202

The Hella 4202 is an on-off-on toggle switch suitable for controlling direction indicator lamps, rated to 15A at 12V.

Brand: Hella  |  Function: On-Off-On  |  Maximum Load: 15A @ 12V, 7.5A @ 24V  |  Hella Part No: 6FG 905 346-002  |  Part No: 4202

Price:
NZ$ 38.16 excluding GST

NZ$ 43.88 including GST


or four payments of $10.97 with
Afterpay Payment Offer Learn More

Product Code:
HL 4202
Purchase Qty:



The centre-off position with an on position either side makes it ideal for left and right indicators, or for switching between two circuits.

Check the mounting hole size and panel thickness before fitting, and use a relay for loads above the switch rating.

  • On-off-on toggle switch
  • Suits direction indicator control
  • 15A at 12V, 7.5A at 24V
  • 3 terminals
  • 13mm mounting hole, panels up to 6mm
  • Brand: Hella
SpecificationValue
BrandHella
FunctionOn-Off-On
Maximum Load15A @ 12V, 7.5A @ 24V
Terminals3
Mounting Hole13mm
Panel ThicknessUp to 6mm
Hella Part No6FG 905 346-002
Part Number4202
