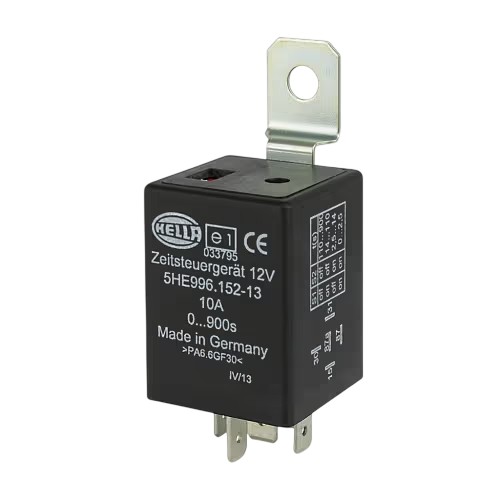

Hella Time Control Relay 12V with Drop-out Delay 0-900s 3086

Hella Time Control Relay 12V with Drop-out Delay 0-900s 3086

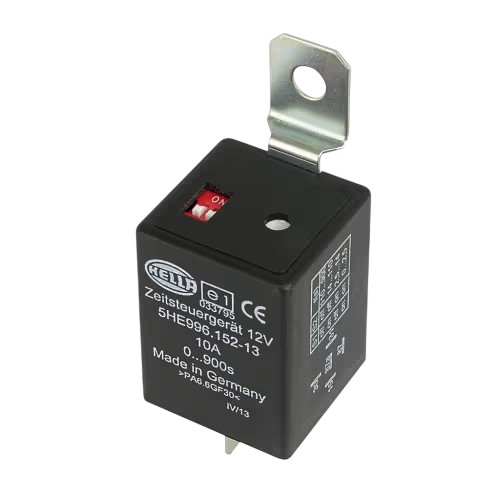

The Hella 3086 is a 12V 5-pin time control relay with a manually adjustable drop-out (off) delay of 0-900 seconds.

Brand: Hella  |  Voltage: 12V  |  Function: Drop-out delay timer  |  Maximum Load: 20A closed (30 min), 10A opening  |  Hella Part No: 5HE 996 152-132  |  Part No: 3086

Price:
NZ$ 86.42 excluding GST

NZ$ 99.38 including GST


or four payments of $24.85 with
Afterpay Payment Offer Learn More

Product Code:
HL 3086
Purchase Qty:

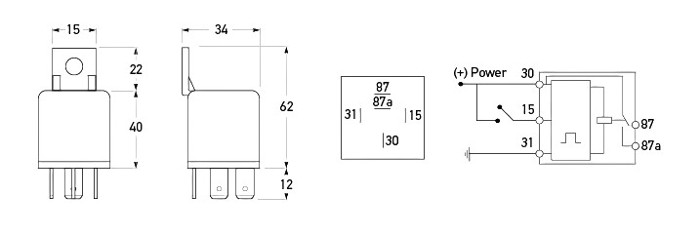

Applying positive to terminal 15 closes the relay contacts (30-87). When terminal 15 is switched off, the timer starts and the contacts open after the set delay, up to 15 minutes. It is ideal for courtesy lights, fans or pumps that should run on after the ignition is turned off. Removing positive from terminal 30 cancels the timer.

Contacts are rated to 10A opening and 20A closed for 30 minutes. Fitted with a mounting bracket and protected to IP50 against dust.

  • Adjustable 0-900 second drop-out (off) delay
  • Runs fans, pumps or lights on after switch-off
  • 12V, 5-pin with mounting bracket
  • Contacts 20A closed / 10A opening
  • IP50 dust protection
  • Brand: Hella
SpecificationValue
BrandHella
Voltage12V
Pins5
FunctionDrop-out delay timer
Delay0-900 seconds, adjustable
Maximum Load20A closed (30 min), 10A opening
BracketYes
ProtectionIP50
Hella Part No5HE 996 152-132
Part Number3086
