Hella Super Seal Connector 4 Pole Plug and Socket Kit 4984

Hella Super Seal Connector 4 Pole Plug and Socket Kit 4984

The Hella 4984 is a 4-pole Super Seal plug and socket kit, complete with terminals and seals, for waterproof IP67 wiring connections.

Brand: Hella  |  Poles: 4  |  Hella Part No: 8KW 959 881-831  |  Part No: 4984

Price:
NZ$ 15.98 excluding GST

NZ$ 18.38 including GST


or four payments of $4.60 with
Afterpay Payment Offer Learn More

Product Code:
HL 4984
Purchase Qty:



Super Seal connectors give a reliable sealed connection for sensors, senders and accessories. A prefabricated secondary lock makes sure each terminal is seated correctly and can't slip out, and the glass-filled polyamide housing resists fuels, oils, coolant and road salt from -40°C to 125°C.

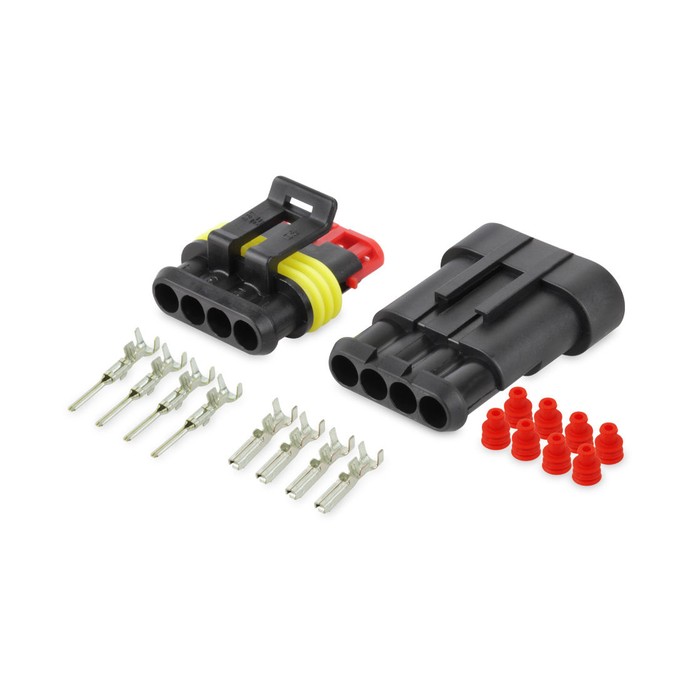

The kit includes the plug, socket, tinned terminals and silicone seals for 1.5-3.3mm cable insulation. Crimp terminals with a suitable crimping tool. Rated to 14A maximum.

  • 4-pole Super Seal plug and socket kit
  • Terminals and seals included
  • IP67 waterproof
  • 14A maximum current
  • Secondary lock holds terminals in place
  • -40°C to 125°C
  • Brand: Hella
SpecificationValue
BrandHella
Poles4
ContentsPlug, socket, terminals and seals
Current Rating14A maximum
ProtectionIP67
Temperature Range-40°C to 125°C
HousingPolyamide 6.6 glass filled
TerminalsTinned brass (male), tinned phosphor bronze (female)
Hella Part No8KW 959 881-831
Part Number4984
