Hella Stop Lamp Switch Mechanical Spring Pull 4560

Hella Stop Lamp Switch Mechanical Spring Pull 4560

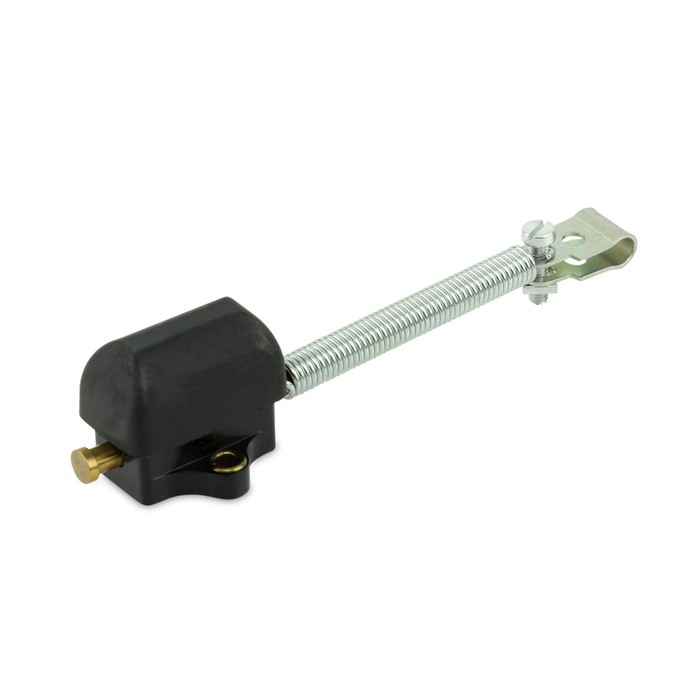

The Hella 4560 is a mechanical spring-pull stop (brake) lamp switch that closes when the brake linkage pulls on the spring.

Brand: Hella  |  Function: Normally open, spring pull  |  Maximum Load: 10A @ 12V, 5A @ 24V  |  Hella Part No: 6DD 905 374-002  |  Part No: 4560

Price:
NZ$ 23.18 excluding GST

NZ$ 26.66 including GST


or four payments of $6.67 with
Afterpay Payment Offer Learn More

Product Code:
HL 4560
Purchase Qty:



The switch is normally open. Its contacts close when tension is applied to the spring by the brake linkage, switching on the stop lamps. It comes with a splash-proof rubber cap and a 6mm diameter brake linkage clamp.

Suits older vehicles, trailers and machinery with mechanical brake linkages. Adjust so the lamps come on as soon as the brake is applied, and test before driving.

  • Mechanical spring-pull stop lamp switch
  • Normally open, closes under spring tension
  • 10A at 12V, 5A at 24V
  • Splash-proof rubber cap
  • 6mm brake linkage clamp
  • Brand: Hella
SpecificationValue
BrandHella
FunctionNormally open, spring pull
Maximum Load10A @ 12V, 5A @ 24V
Linkage Clamp6mm diameter
CapSplash-proof rubber
Hella Part No6DD 905 374-002
Part Number4560

View your shopping basket or Browse other items in Brake Light Switch.
