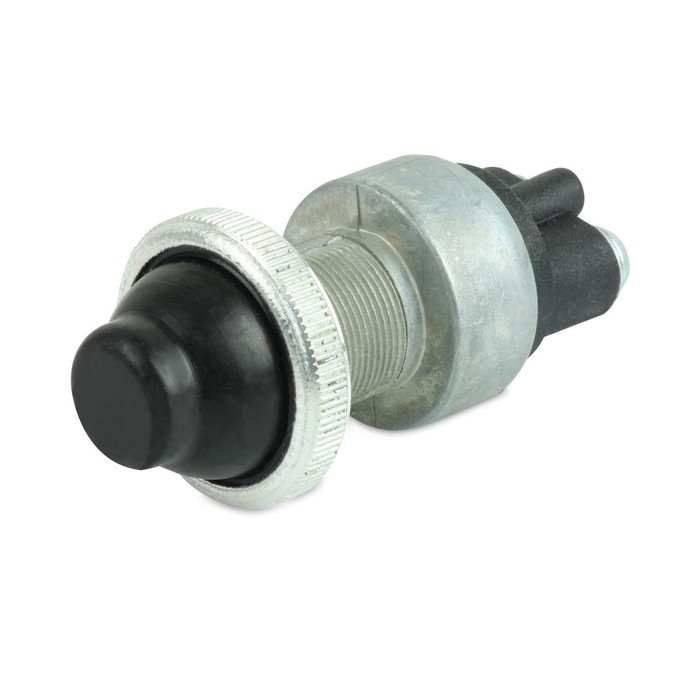

Hella Starter Push Button Switch Water Resistant 60A 4506

Hella Starter Push Button Switch Water Resistant 60A 4506

The Hella 4506 is a water-resistant momentary starter push button switch with a rubber cap, rated to 60A at 12V.

Brand: Hella  |  Function: Off-(On) momentary  |  Maximum Load: 60A @ 12V, 40A @ 24V  |  Hella Part No: 6JB 905 371-002  |  Part No: 4506

Price:
NZ$ 27.99 excluding GST

NZ$ 32.19 including GST


or four payments of $8.05 with
Afterpay Payment Offer Learn More

Product Code:
HL 4506
Purchase Qty:



With a 60A rating at 12V (40A at 24V), it can switch a starter solenoid directly. The rubber cap keeps water out on machinery, boats and exposed dashboards.

Check the mounting hole size and panel thickness before fitting, and use a relay for loads above the switch rating.

  • Water-resistant starter push button
  • Momentary, spring return
  • 60A at 12V, 40A at 24V
  • 2 terminals
  • 16mm mounting hole, panels up to 10mm
  • Brand: Hella
SpecificationValue
BrandHella
FunctionOff-(On) momentary
Maximum Load60A @ 12V, 40A @ 24V
Terminals2
Mounting Hole16mm
Panel ThicknessUp to 10mm
Hella Part No6JB 905 371-002
Part Number4506
