Hella Starter and Ignition Switch 18mm with Start-Lockout 4010

Hella Starter and Ignition Switch 18mm with Start-Lockout 4010

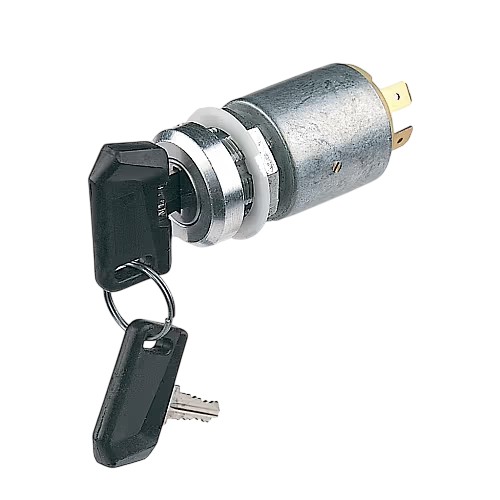

The Hella 4010 is a four-position starter and ignition switch (accessory, off, ignition, start) with an 18mm shaft and two keys.

Brand: Hella  |  Positions: Accessory, off, ignition, start  |  Hella Part No: 6JK 905 340-002  |  Part No: 4010

Price:
NZ$ 111.76 excluding GST

NZ$ 128.52 including GST


or four payments of $32.13 with
Afterpay Payment Offer Learn More

Product Code:
HL 4010
Purchase Qty:



A start-lockout mechanism stops the starter being re-engaged accidentally while the engine is running. Contacts are rated to 25A ignition, 50A start and 20A accessory at 12V.

Mounts in an 18.5mm hole in panels up to 19mm thick. Disconnect the battery before wiring, and use a starter relay or solenoid for the starter motor circuit.

  • Four positions: accessory, off, ignition, start
  • Start-lockout prevents accidental starter engagement
  • Supplied with two keys
  • Rated 25A ignition, 50A start, 20A accessory
  • 18.5mm mounting hole, panels up to 19mm
  • Brand: Hella
SpecificationValue
BrandHella
PositionsAccessory, off, ignition, start
Maximum Load @ 12VIgnition 25A, start 50A, accessory 20A
Mounting Hole18.5mm
Panel ThicknessUp to 19mm
Keys2 supplied
Hella Part No6JK 905 340-002
Part Number4010
