Hella Safety DayLights Smart Controller with Vibration Monitor 12/24V 3090

Hella Safety DayLights Smart Controller with Vibration Monitor 12/24V 3090

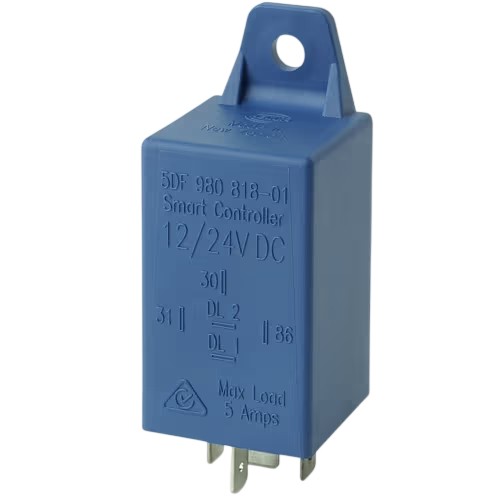

The Hella 3090 is a Multivolt smart controller for Hella LED Safety DayLights, with a vibration monitor for vehicles with fuel-saving (smart) alternators.

Brand: Hella  |  Voltage: Multivolt 12/24V  |  Hella Part No: 5DF 980 818-011  |  Part No: 3090

Price:
NZ$ 81.56 excluding GST

NZ$ 93.79 including GST


or four payments of $23.45 with
Afterpay Payment Offer Learn More

Product Code:
HL 3090
Purchase Qty:



The controller wires straight to the battery positive, so there's no need to find an ignition feed. It monitors battery voltage (and engine vibration on this advanced version) to switch the DayLights on when the engine starts, and off when the headlamps are switched on or the engine stops, with about a 10-second off delay.

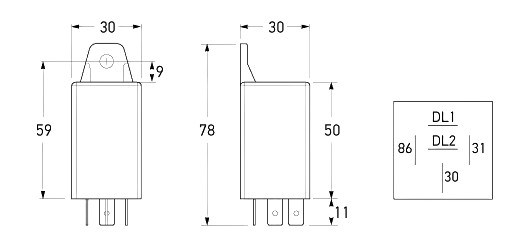

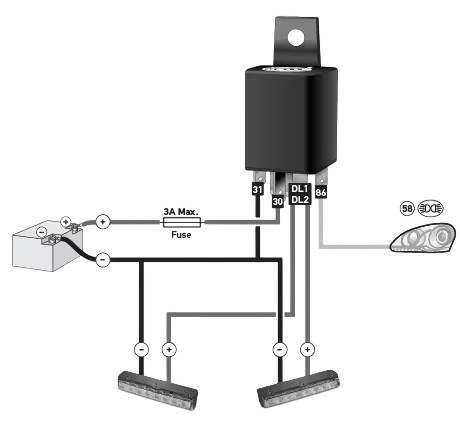

One controller runs two lamps, up to 20W continuous. Terminals: 30 battery (+), 31 earth, 86 front position or headlamps (+), DL1 and DL2 to the DayLights.

  • Automatic on/off control for Hella Safety DayLights
  • Vibration monitor suits smart-alternator vehicles
  • Wires direct to battery, no ignition feed needed
  • Controls two lamps, 20W continuous
  • Multivolt for 12 and 24V systems
  • Brand: Hella
SpecificationValue
BrandHella
VoltageMultivolt 12/24V
Maximum Continuous Load20W
SuitsHella LED Safety DayLights
Off DelayAbout 10 seconds
Terminals30 battery +, 31 earth, 86 headlamps +, DL1/DL2 lamps
Hella Part No5DF 980 818-011
Part Number3090
