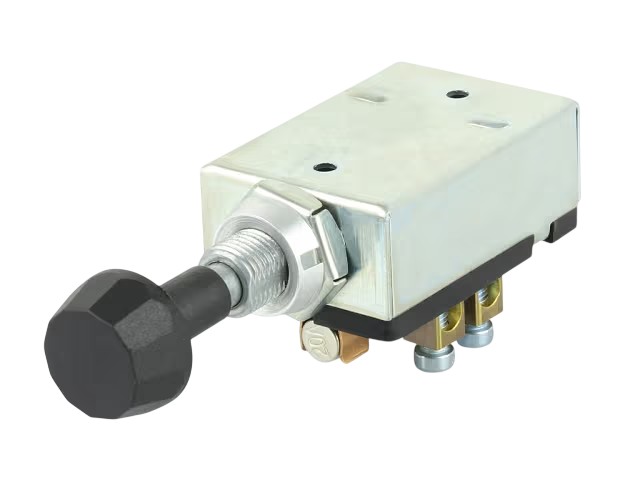

Hella Push/Pull Headlamp Switch Off-On-On 4055

Hella Push/Pull Headlamp Switch Off-On-On 4055

The Hella 4055 is a three-position (off-on-on) push/pull headlamp switch with a black grip and a built-in 20A glass fuse.

Brand: Hella  |  Function: Off-On-On push/pull  |  Maximum Load: 10A @ 12V, 5A @ 24V  |  Hella Part No: 6RD 905 343-002  |  Part No: 4055

Price:
NZ$ 26.73 excluding GST

NZ$ 30.74 including GST


or four payments of $7.69 with
Afterpay Payment Offer Learn More

Product Code:
HL 4055
Purchase Qty:



Pulling the knob out to the first and second positions switches two lighting circuits in turn, such as park lamps and then headlamps. The switch has 4 terminals and no pilot lamp, and the built-in 20A glass fuse protects the lighting circuit.

Mounts in an 11mm hole in panels up to 10mm thick. Maximum load is 10A at 12V or 5A at 24V, so use a relay for higher-current headlamps.

  • Three-position off-on-on push/pull switch
  • Built-in 20A glass fuse
  • Black grip, no pilot lamp
  • 11mm mounting hole, panels up to 10mm
  • 10A at 12V, 5A at 24V
  • Brand: Hella
SpecificationValue
BrandHella
FunctionOff-On-On push/pull
Terminals4
Maximum Load10A @ 12V, 5A @ 24V
Fuse20A glass fuse
Mounting Hole11mm
Panel ThicknessUp to 10mm
Hella Part No6RD 905 343-002
Part Number4055
