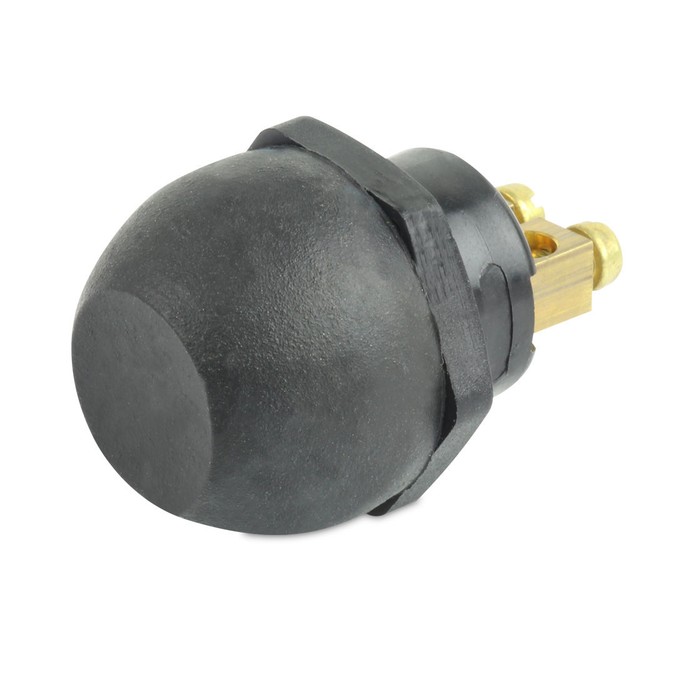

Hella Push Button Switch Momentary Water Resistant Rubber Top 4503

Hella Push Button Switch Momentary Water Resistant Rubber Top 4503

The Hella 4503 is a water-resistant momentary off-(on) push button switch with a rubber top, rated to 16A at 12V.

Brand: Hella  |  Function: Off-(On) momentary  |  Maximum Load: 16A @ 12V, 8A @ 24V  |  Hella Part No: 6JF 001 571-152  |  Part No: 4503

Price:
NZ$ 18.86 excluding GST

NZ$ 21.69 including GST


or four payments of $5.42 with
Afterpay Payment Offer Learn More

Product Code:
HL 4503
Purchase Qty:



The rubber cap keeps water and dust out, making it suitable as a starter or horn button on machinery, boats and exposed dashboards. The circuit is on only while the button is pressed.

Do not remove the rubber cap or front nut when fitting. Mounts in a 22.5mm hole in panels up to 2mm thick.

  • Water-resistant momentary push button
  • Rubber top
  • 16A at 12V, 8A at 24V
  • 2 terminals
  • 22.5mm mounting hole, panels up to 2mm
  • Brand: Hella
SpecificationValue
BrandHella
FunctionOff-(On) momentary
Maximum Load16A @ 12V, 8A @ 24V
Terminals2
Mounting Hole22.5mm
Panel ThicknessUp to 2mm
Hella Part No6JF 001 571-152
Part Number4503
