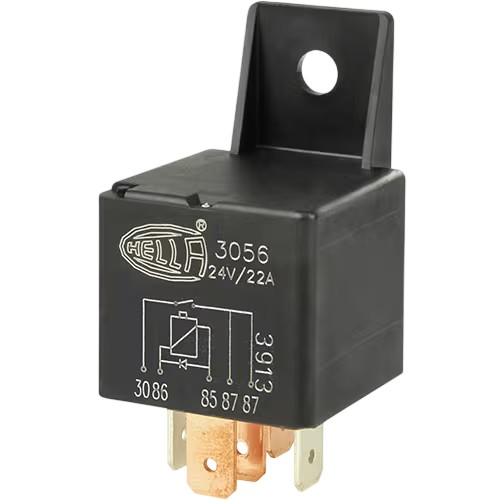

Hella Mini Relay 24V 5 Pin Normally Open 22A with Diode 3056

The Hella 3056 is a 24V 5-pin normally open mini relay rated to 22A, with a built-in diode.

Price:

NZ$ 22.41 excluding GST

NZ$ 25.77 including GST

or four payments of $6.44 with
Learn More

Product Code:

HL 3056

Information
Features
Specifications

A normally open relay connects terminal 30 to 87 when its coil (85/86) is energised, so a low-current switch can safely control a high-current load such as driving lamps, horns, fans or pumps. The built-in diode suppresses the voltage spike when the coil switches off, protecting electronic switches and control modules.

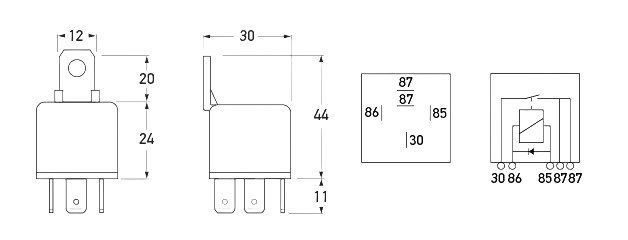

Wiring: 30 to fused battery positive, 87 to the load, 86 to the switched positive and 85 to earth. Coil draw is 90mA, and a mounting bracket is fitted. Hella makes more than 100 million relays a year for OEMs including Ford, VW, GM and John Deere.

24V 5-pin normally open mini relay
Rated to 22A
Built-in suppression diode protects electronics
Low 90mA coil current draw
Mounting bracket fitted
Brand: Hella

Specification	Value
Brand	Hella
Voltage	24V
Pins	5
Function	Normally Open
Maximum Load	22A
Protection	Diode
Coil Current Draw	90mA
Mounting Bracket	Yes
Hella Part No	4RA 905 330-252
Part Number	3056
