Hella Mini Relay 24V 4 Pin Normally Open 20A 3079

The Hella 3079 is a 24V 4-pin normally open mini relay rated to 20A.

Price:

NZ$ 9.99 excluding GST

NZ$ 11.49 including GST

or four payments of $2.87 with
Learn More

Product Code:

HL 3079

Information
Features
Specifications

A normally open relay connects terminal 30 to 87 when its coil (85/86) is energised, so a low-current switch can safely control a high-current load such as driving lamps, horns, fans or pumps.

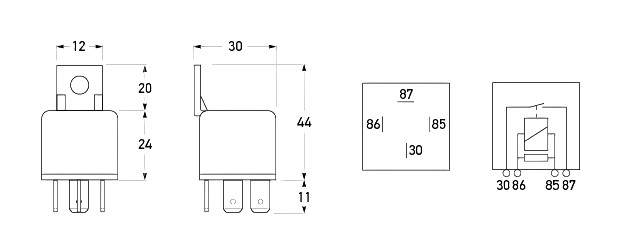

Wiring: 30 to fused battery positive, 87 to the load, 86 to the switched positive and 85 to earth. Coil draw is 70mA, and a mounting bracket is fitted. Hella makes more than 100 million relays a year for OEMs including Ford, VW, GM and John Deere.

24V 4-pin normally open mini relay
Rated to 20A
Low 70mA coil current draw
Mounting bracket fitted
Brand: Hella

Specification	Value
Brand	Hella
Voltage	24V
Pins	4
Function	Normally Open
Maximum Load	20A
Coil Current Draw	70mA
Mounting Bracket	Yes
Hella Part No	4RA 965 400-102
Part Number	3079
