Hella Mini Relay 24V 4 Pin Normally Open 15A Fused 3077

Hella Mini Relay 24V 4 Pin Normally Open 15A Fused 3077

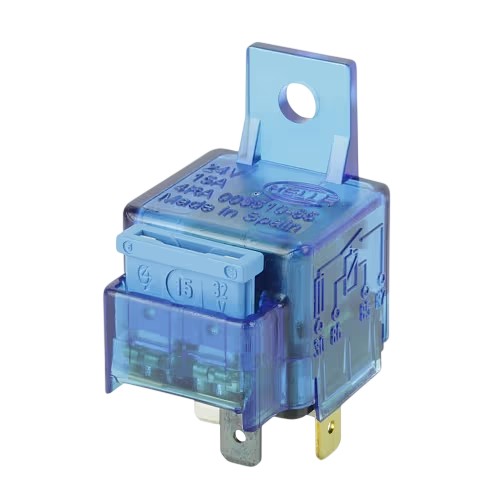

The Hella 3077 is a 24V 4-pin normally open mini relay rated to 15A, with a built-in 15A fuse.

Brand: Hella  |  Voltage: 24V  |  Function: Normally Open  |  Maximum Load: 15A  |  Hella Part No: 4RA 003 530-053  |  Part No: 3077

Price:
NZ$ 52.70 excluding GST

NZ$ 60.61 including GST


or four payments of $15.15 with
Afterpay Payment Offer Learn More

Product Code:
HL 3077
Purchase Qty:



A normally open relay connects terminal 30 to 87 when its coil (85/86) is energised, so a low-current switch can safely control a high-current load such as driving lamps, horns, fans or pumps. A built-in 15A Fuse protects the switched circuit, saving a separate in-line fuse.

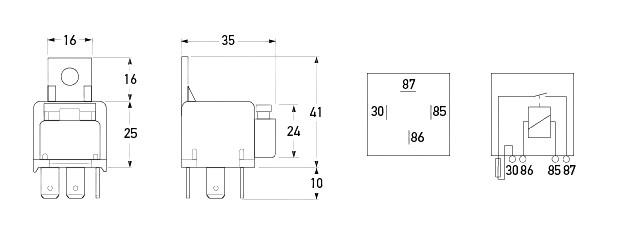

Wiring: 30 to fused battery positive, 87 to the load, 86 to the switched positive and 85 to earth. Coil draw is 80mA, and a mounting bracket is fitted. Hella makes more than 100 million relays a year for OEMs including Ford, VW, GM and John Deere.

  • 24V 4-pin normally open mini relay
  • Rated to 15A
  • Built-in 15A Fuse protects the circuit
  • Low 80mA coil current draw
  • Mounting bracket fitted
  • Brand: Hella
SpecificationValue
BrandHella
Voltage24V
Pins4
FunctionNormally Open
Maximum Load15A
Protection15A Fuse
Coil Current Draw80mA
Mounting BracketYes
Hella Part No4RA 003 530-053
Part Number3077
