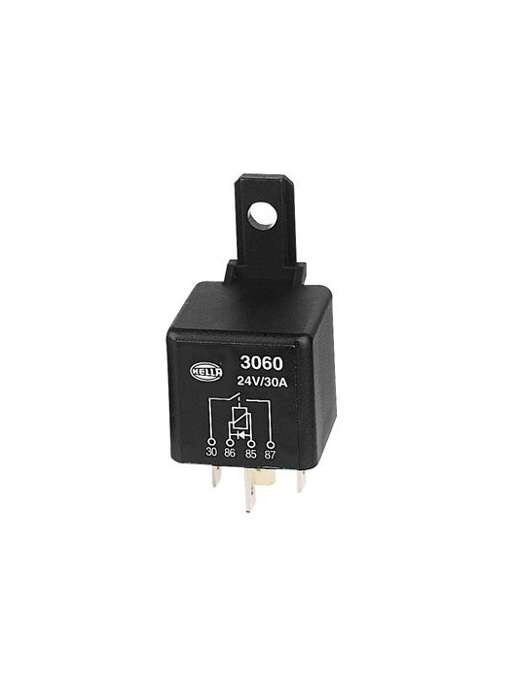

Hella Mini Relay 24V 30A Normally Open with Diode 3060

Hella Mini Relay 24V 30A Normally Open with Diode 3060

The Hella 3060 is a 24V normally open mini relay rated to 30A, with a built-in suppression diode.

Brand: Hella  |  Voltage: 24V  |  Function: Normally open  |  Maximum Load: 30A  |  Part No: 3060

Price:
NZ$ 27.95 excluding GST

NZ$ 32.14 including GST


or four payments of $8.04 with
Afterpay Payment Offer Learn More

Product Code:
HL 3060
Purchase Qty:



A normally open relay connects terminal 30 to 87 when its coil (85/86) is energised, so a low-current switch can safely control a high-current load such as driving lamps, horns, fans or pumps. The built-in diode suppresses the voltage spike when the coil switches off, protecting electronic switches and control modules.

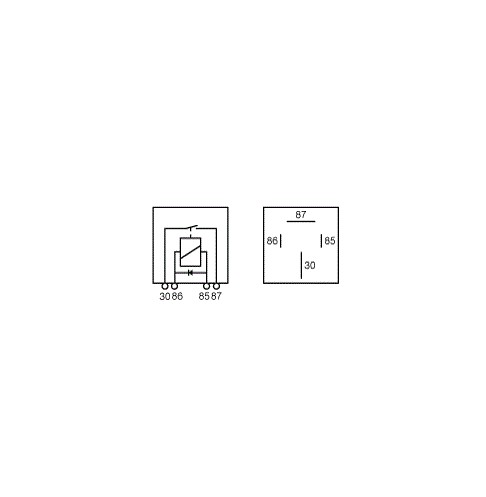

Wiring: 30 to fused battery positive, 87 to the load, 86 to the switched positive and 85 to earth. Check the pin layout against your old relay before fitting.

  • 24V normally open mini relay
  • Rated to 30A
  • Built-in suppression diode protects electronics
  • Genuine Hella part
  • Brand: Hella
SpecificationValue
BrandHella
Voltage24V
FunctionNormally open
Maximum Load30A
ProtectionDiode
Part Number3060
