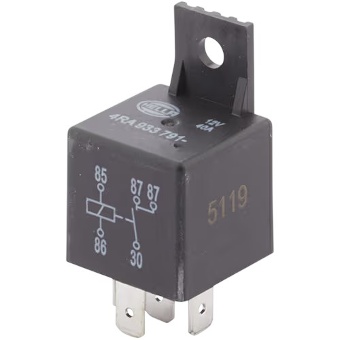

Hella Mini Relay 12V 5 Pin Normally Open 40A 3082

The Hella 3082 is a 12V 5-pin normally open mini relay rated to 40A.

Price:

NZ$ 10.38 excluding GST

NZ$ 11.94 including GST

or four payments of $2.99 with
Learn More

Product Code:

HL 3082

Information
Features
Specifications

A normally open relay connects terminal 30 to 87 when its coil (85/86) is energised, so a low-current switch can safely control a high-current load such as driving lamps, horns, fans or pumps.

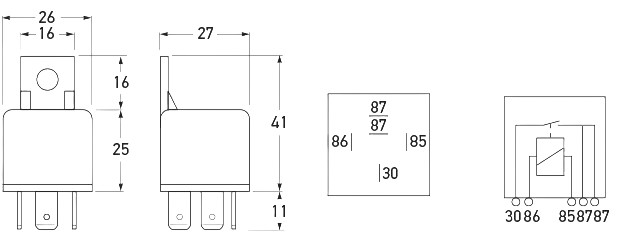

Wiring: 30 to fused battery positive, 87 to the load, 86 to the switched positive and 85 to earth. Coil draw is 140mA, and a mounting bracket is fitted. Hella makes more than 100 million relays a year for OEMs including Ford, VW, GM and John Deere.

12V 5-pin normally open mini relay
Rated to 40A
Low 140mA coil current draw
Mounting bracket fitted
Brand: Hella

Specification	Value
Brand	Hella
Voltage	12V
Pins	5
Function	Normally Open
Maximum Load	40A
Coil Current Draw	140mA
Mounting Bracket	Yes
Hella Part No	4RA 933 791-062
Part Number	3082
