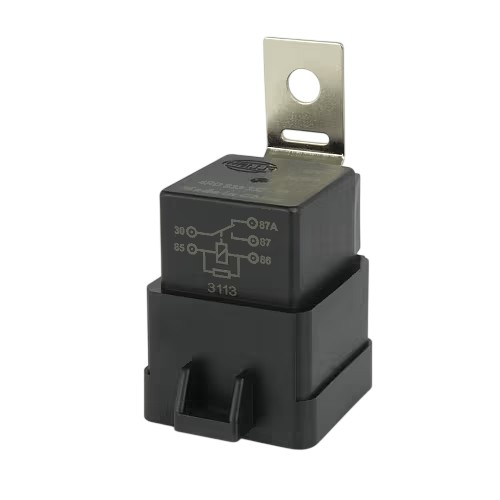

Hella Mini Relay 12V 5 Pin Change-over 30/20A with Resistor Weatherproof 3080S

Information

A change-over relay switches the supply on terminal 30 between two outputs: 87a when the coil is at rest and 87 when it is energised. Use it to swap between two circuits (such as low and high beam) or as a heavy-duty normally open or normally closed switch. A resistor across the coil suppresses switching spikes to protect sensitive electronics. This weatherproof version forms a dust and water resistant seal with its matching connector (4973S, sold separately).

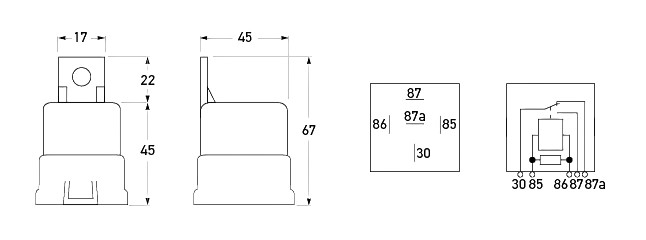

Wiring: 30 to fused battery positive, 87 to the load, 87a to the alternative load, 86 to the switched positive and 85 to earth. Coil draw is 160mA, and a mounting bracket is fitted. Hella makes more than 100 million relays a year for OEMs including Ford, VW, GM and John Deere.
