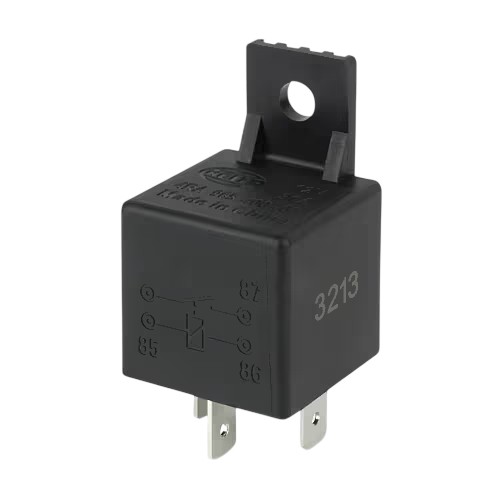

Hella Mini Relay 12V 4 Pin Normally Open 40A 3078

Hella Mini Relay 12V 4 Pin Normally Open 40A 3078

The Hella 3078 is a 12V 4-pin normally open mini relay rated to 40A.

Brand: Hella  |  Voltage: 12V  |  Function: Normally Open  |  Maximum Load: 40A  |  Hella Part No: 4RA 965 400-072  |  Part No: 3078

Price:
NZ$ 10.35 excluding GST

NZ$ 11.90 including GST


or four payments of $2.98 with
Afterpay Payment Offer Learn More

Product Code:
HL 3078
Purchase Qty:



A normally open relay connects terminal 30 to 87 when its coil (85/86) is energised, so a low-current switch can safely control a high-current load such as driving lamps, horns, fans or pumps.

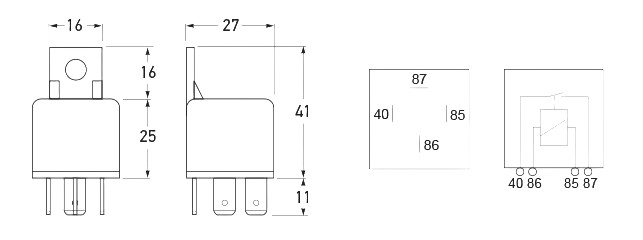

Wiring: 30 to fused battery positive, 87 to the load, 86 to the switched positive and 85 to earth. Coil draw is 140mA, and a mounting bracket is fitted. Hella makes more than 100 million relays a year for OEMs including Ford, VW, GM and John Deere.

  • 12V 4-pin normally open mini relay
  • Rated to 40A
  • Low 140mA coil current draw
  • Mounting bracket fitted
  • Brand: Hella
SpecificationValue
BrandHella
Voltage12V
Pins4
FunctionNormally Open
Maximum Load40A
Coil Current Draw140mA
Mounting BracketYes
Hella Part No4RA 965 400-072
Part Number3078
