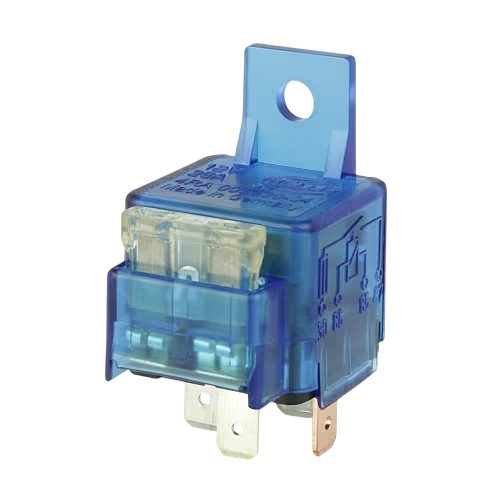

Hella Mini Relay 12V 4 Pin Normally Open 25A Fused 3076

Hella Mini Relay 12V 4 Pin Normally Open 25A Fused 3076

The Hella 3076 is a 12V 4-pin normally open mini relay rated to 25A, with a built-in 25A fuse.

Brand: Hella  |  Voltage: 12V  |  Function: Normally Open  |  Maximum Load: 25A  |  Hella Part No: 4RA 003 530-044  |  Part No: 3076

Price:
NZ$ 52.13 excluding GST

NZ$ 59.95 including GST


or four payments of $14.99 with
Afterpay Payment Offer Learn More

Product Code:
HL 3076
Purchase Qty:



A normally open relay connects terminal 30 to 87 when its coil (85/86) is energised, so a low-current switch can safely control a high-current load such as driving lamps, horns, fans or pumps. A built-in 25A Fuse protects the switched circuit, saving a separate in-line fuse.

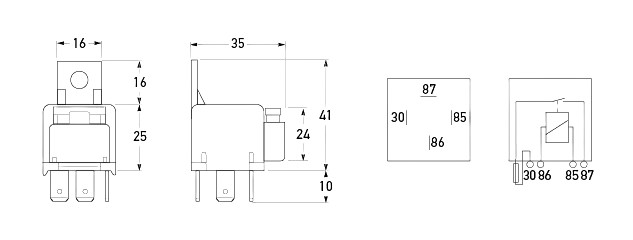

Wiring: 30 to fused battery positive, 87 to the load, 86 to the switched positive and 85 to earth. Coil draw is 140mA, and a mounting bracket is fitted. Hella makes more than 100 million relays a year for OEMs including Ford, VW, GM and John Deere.

  • 12V 4-pin normally open mini relay
  • Rated to 25A
  • Built-in 25A Fuse protects the circuit
  • Low 140mA coil current draw
  • Mounting bracket fitted
  • Brand: Hella
SpecificationValue
BrandHella
Voltage12V
Pins4
FunctionNormally Open
Maximum Load25A
Protection25A Fuse
Coil Current Draw140mA
Mounting BracketYes
Hella Part No4RA 003 530-044
Part Number3076
