Hella Micro Relay 12V 5 Pin Latching 20A 3064L

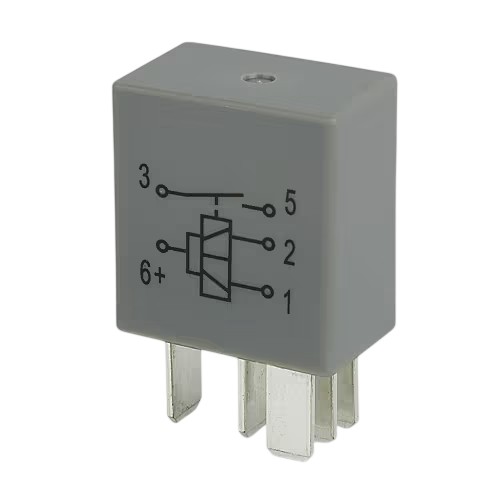

The Hella 3064L is a 12V 5-pin latching micro relay rated to 20A.

Price:

NZ$ 21.67 excluding GST

NZ$ 24.92 including GST

or four payments of $6.23 with
Learn More

Product Code:

HL 3064L

Information
Features
Specifications

A latching relay stays in its last state when power is removed, so it remains on or off rather than dropping out. A negative pulse on terminal 1 or 2 switches it on or off, making it ideal for push-button control of accessories without a constant coil current.

Wiring: 30 to fused battery positive, 87 to the load, 86 to the switched positive and 85 to earth. It has three 4.8mm blade terminals (1, 2 and 6) and two 6.3mm blade terminals. Coil draw is 140mA and there is no mounting bracket. Hella makes more than 100 million relays a year for OEMs including Ford, VW, GM and John Deere.

12V 5-pin latching micro relay
Rated to 20A
Stays on or off when power is removed
Low 140mA coil current draw
No mounting bracket (plugs into a relay socket)
Brand: Hella

Specification	Value
Brand	Hella
Voltage	12V
Pins	5
Function	Latching
Maximum Load	20A
Coil Current Draw	140mA
Mounting Bracket	No

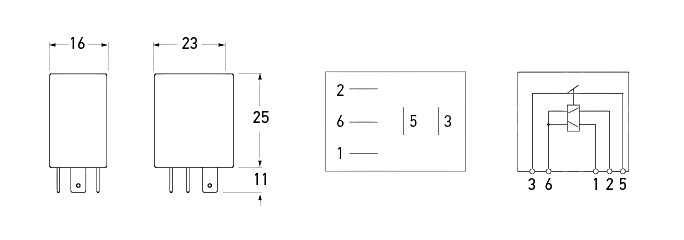

Terminals	three 4.8mm blade terminals (1, 2 and 6) and two 6.3mm blade terminals
Hella Part No	4RC 933 364-021
Part Number	3064L
