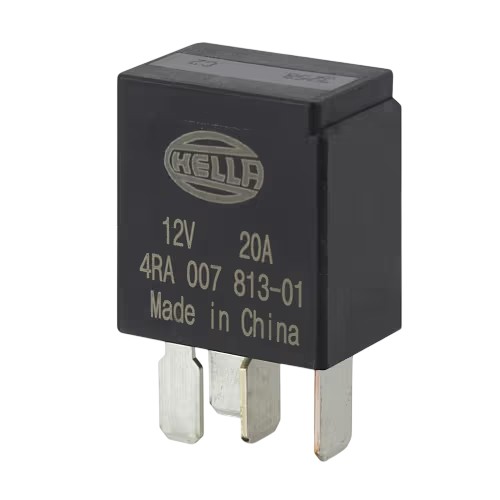

Hella Micro Relay 12V 4 Pin Normally Open 20A with Resistor 3064

Hella Micro Relay 12V 4 Pin Normally Open 20A with Resistor 3064

The Hella 3064 is a 12V 4-pin normally open micro relay rated to 20A, with a built-in resistor.

Brand: Hella  |  Voltage: 12V  |  Function: Normally Open  |  Maximum Load: 20A  |  Hella Part No: 4RA 933 766-111  |  Part No: 3064

Price:
NZ$ 7.43 excluding GST

NZ$ 8.54 including GST


or four payments of $2.14 with
Afterpay Payment Offer Learn More

Product Code:
HL 3064
Purchase Qty:



A normally open relay connects terminal 30 to 87 when its coil (85/86) is energised, so a low-current switch can safely control a high-current load such as driving lamps, horns, fans or pumps. A resistor across the coil suppresses switching spikes to protect sensitive electronics.

Wiring: 30 to fused battery positive, 87 to the load, 86 to the switched positive and 85 to earth. It has two 4.8mm blade terminals (85 and 86) and two 6.3mm blade terminals. Coil draw is 140mA and there is no mounting bracket. Hella makes more than 100 million relays a year for OEMs including Ford, VW, GM and John Deere.

  • 12V 4-pin normally open micro relay
  • Rated to 20A
  • Built-in suppression resistor
  • Low 140mA coil current draw
  • No mounting bracket (plugs into a relay socket)
  • Brand: Hella
SpecificationValue
BrandHella
Voltage12V
Pins4
FunctionNormally Open
Maximum Load20A
ProtectionResistor
Coil Current Draw140mA
Mounting BracketNo
Terminalstwo 4.8mm blade terminals (85 and 86) and two 6.3mm blade terminals
Hella Part No4RA 933 766-111
Part Number3064
