Hella Metal Toggle Switch (On)-Off-(On) Momentary 20A 4461

Hella Metal Toggle Switch (On)-Off-(On) Momentary 20A 4461

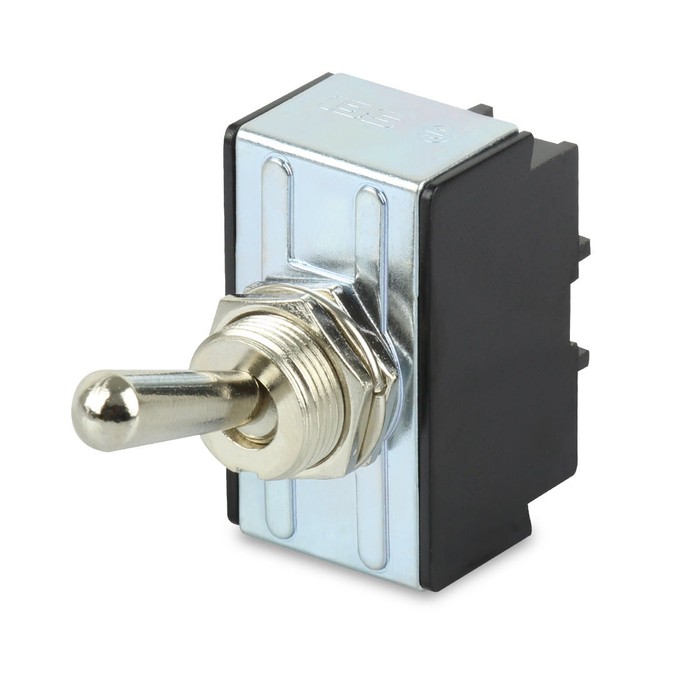

The Hella 4461 is a momentary (on)-off-(on) spring return toggle switch with a metal shaft, rated to 20A at 12V or 10A at 24V.

Brand: Hella  |  Function: (On)-Off-(On) momentary spring return  |  Maximum Load: 20A @ 12V, 10A @ 24V  |  Hella Part No: 6EH 905 362-002  |  Part No: 4461

Price:
NZ$ 13.66 excluding GST

NZ$ 15.71 including GST


or four payments of $3.93 with
Afterpay Payment Offer Learn More

Product Code:
HL 4461
Purchase Qty:



The metal toggle and shaft are tough enough for vehicles, machinery and marine dashboards. The lever springs back to centre when released, so the circuit is only on while held, which suits winches, horns and motors. A rubber boot (Hella 4452) is available to seal out dust and water.

Check the mounting hole size and panel thickness before fitting, and use a relay for loads above the switch rating.

  • (On)-Off-(On) momentary spring return toggle switch
  • Metal shaft and toggle
  • 20A at 12V, 10A at 24V
  • 3 terminals
  • 12mm mounting hole, panels up to 5mm
  • Optional rubber boot (4452)
  • Brand: Hella
SpecificationValue
BrandHella
Function(On)-Off-(On) momentary spring return
Maximum Load20A @ 12V, 10A @ 24V
Terminals3
Mounting Hole12mm
Panel ThicknessUp to 5mm
Rubber Boot4452 (optional)
Hella Part No6EH 905 362-002
Part Number4461
