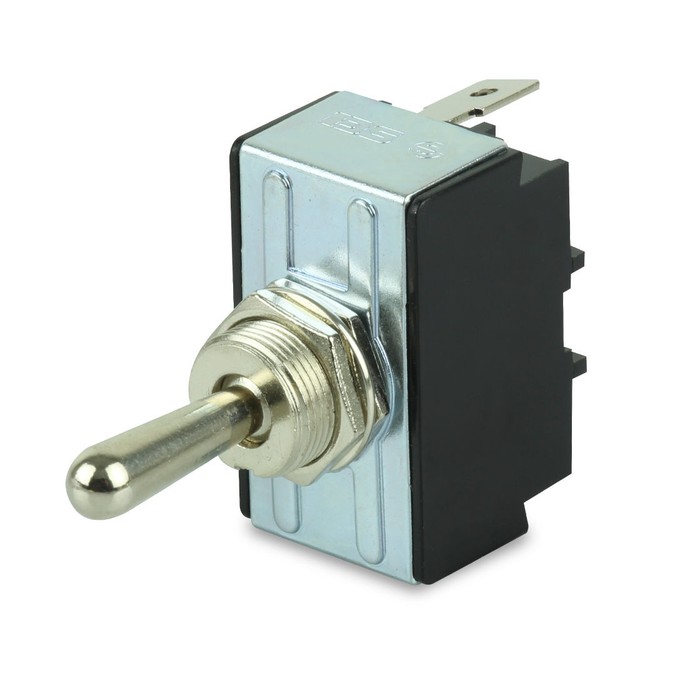

Hella Metal Toggle Switch On-Off-On 20A 4302

Hella Metal Toggle Switch On-Off-On 20A 4302

The Hella 4302 is an on-off-on toggle switch with a metal shaft, rated to 20A at 12V or 10A at 24V.

Brand: Hella  |  Function: On-Off-On  |  Maximum Load: 20A @ 12V, 10A @ 24V  |  Hella Part No: 6FG 905 348-002  |  Part No: 4302

Price:
NZ$ 14.72 excluding GST

NZ$ 16.93 including GST


or four payments of $4.23 with
Afterpay Payment Offer Learn More

Product Code:
HL 4302
Purchase Qty:



The metal toggle and shaft are tough enough for vehicles, machinery and marine dashboards. A rubber boot (Hella 4452) is available to seal out dust and water.

Check the mounting hole size and panel thickness before fitting, and use a relay for loads above the switch rating.

  • On-Off-On toggle switch
  • Metal shaft and toggle
  • 20A at 12V, 10A at 24V
  • 3 terminals
  • 12mm mounting hole, panels up to 5mm
  • Optional rubber boot (4452)
  • Brand: Hella
SpecificationValue
BrandHella
FunctionOn-Off-On
Maximum Load20A @ 12V, 10A @ 24V
Terminals3
Mounting Hole12mm
Panel ThicknessUp to 5mm
Rubber Boot4452 (optional)
Hella Part No6FG 905 348-002
Part Number4302
