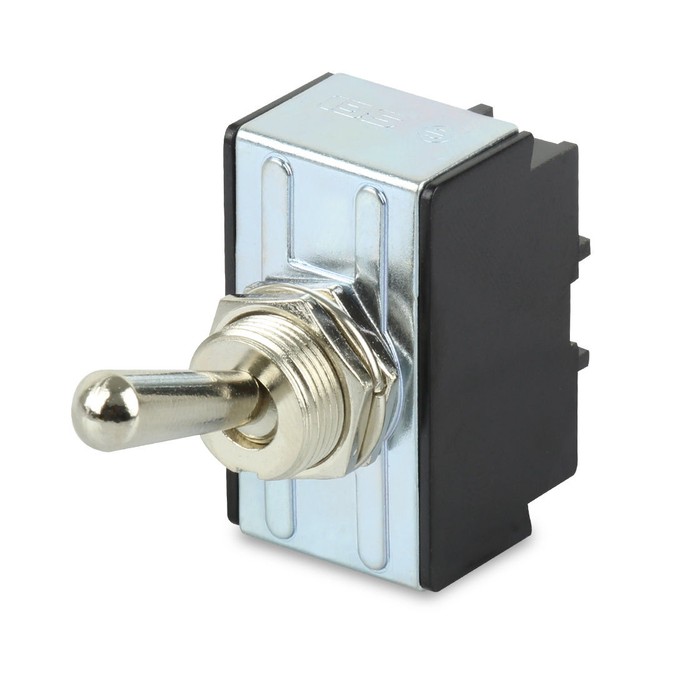

Hella Metal Toggle Switch Off-On 20A 4451

Hella Metal Toggle Switch Off-On 20A 4451

The Hella 4451 is an off-on toggle switch with a metal shaft, rated to 20A at 12V or 10A at 24V.

Brand: Hella  |  Function: Off-On  |  Maximum Load: 20A @ 12V, 10A @ 24V  |  Hella Part No: 6EH 905 359-002  |  Part No: 4451

Price:
NZ$ 10.80 excluding GST

NZ$ 12.42 including GST


or four payments of $3.11 with
Afterpay Payment Offer Learn More

Product Code:
HL 4451
Purchase Qty:



The metal toggle and shaft are tough enough for vehicles, machinery and marine dashboards. A rubber boot (Hella 4452) is available to seal out dust and water.

Check the mounting hole size and panel thickness before fitting, and use a relay for loads above the switch rating.

  • Off-On toggle switch
  • Metal shaft and toggle
  • 20A at 12V, 10A at 24V
  • 2 terminals
  • 12mm mounting hole, panels up to 5mm
  • Optional rubber boot (4452)
  • Brand: Hella
SpecificationValue
BrandHella
FunctionOff-On
Maximum Load20A @ 12V, 10A @ 24V
Terminals2
Mounting Hole12mm
Panel ThicknessUp to 5mm
Rubber Boot4452 (optional)
Hella Part No6EH 905 359-002
Part Number4451
