Hella Indicator Toggle Switch On-Off-On Illuminated Green 4206

Hella Indicator Toggle Switch On-Off-On Illuminated Green 4206

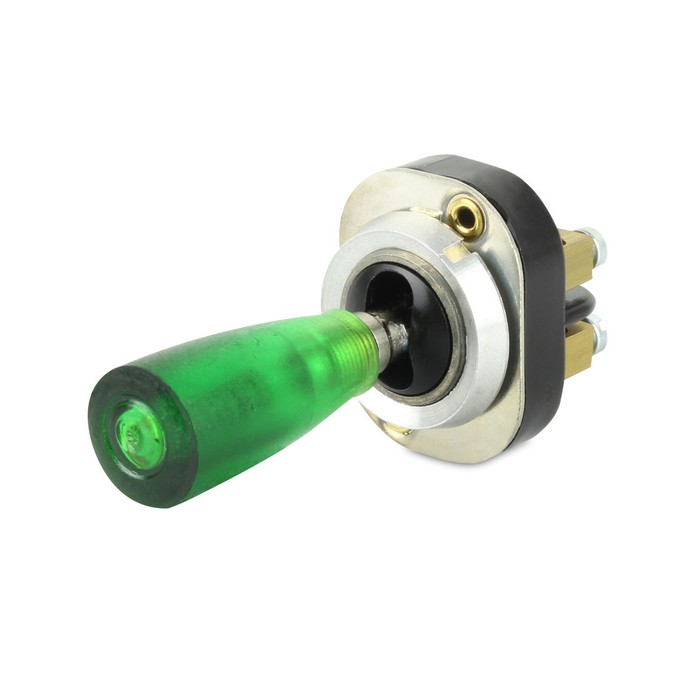

The Hella 4206 is a 3-position latching on-off-on indicator toggle switch that illuminates green, rated to 6A at 12V.

Brand: Hella  |  Function: On-Off-On latching, illuminated green  |  Maximum Load: 6A @ 12V  |  Hella Part No: 6FG 905 347-002  |  Part No: 4206

Price:
NZ$ 41.04 excluding GST

NZ$ 47.20 including GST


or four payments of $11.80 with
Afterpay Payment Offer Learn More

Product Code:
HL 4206
Purchase Qty:



Designed for indicator control, it lights green when an indicator is on. It has 4 terminals and takes a 12V 2W E5.5 screw-base bulb (not supplied by Hella).

Check the mounting hole size and panel thickness before fitting, and use a relay for loads above the switch rating.

  • On-off-on latching indicator switch
  • Green illumination
  • 6A at 12V
  • 4 terminals
  • 19mm mounting hole, panels up to 2mm
  • Brand: Hella
SpecificationValue
BrandHella
FunctionOn-Off-On latching, illuminated green
Maximum Load6A @ 12V
Terminals4
Mounting Hole19mm
Panel ThicknessUp to 2mm
Bulb12V 2W E5.5 screw base
Hella Part No6FG 905 347-002
Part Number4206
