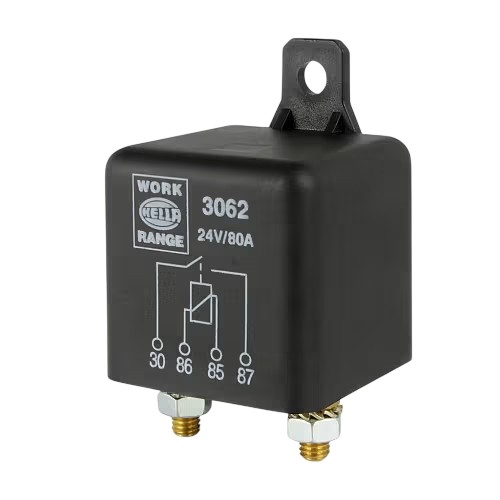

Hella High Capacity Relay 24V 4 Pin Normally Open 60A Continuous / 80A Peak 3062

Hella High Capacity Relay 24V 4 Pin Normally Open 60A Continuous / 80A Peak 3062

The Hella 3062 is a 24V 4-pin normally open high capacity relay rated to 60A continuous and 80A peak.

Brand: Hella  |  Voltage: 24V  |  Function: Normally Open  |  Maximum Load: 80A peak current (60A continuous)  |  Hella Part No: 4RA 905 330-281  |  Part No: 3062

Price:
NZ$ 58.43 excluding GST

NZ$ 67.19 including GST


or four payments of $16.80 with
Afterpay Payment Offer Learn More

Product Code:
HL 3062
Purchase Qty:



A normally open relay connects terminal 30 to 87 when its coil (85/86) is energised, so a low-current switch can safely control a high-current load such as driving lamps, horns, fans or pumps.

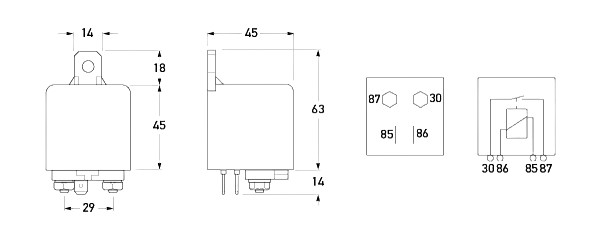

Wiring: 30 to fused battery positive, 87 to the load, 86 to the switched positive and 85 to earth. Terminals 30 and 87 are 6mm studs for heavy cable. Coil draw is 180mA, and a mounting bracket is fitted. Hella makes more than 100 million relays a year for OEMs including Ford, VW, GM and John Deere.

  • 24V 4-pin normally open high capacity relay
  • Rated to 80A peak current (60A continuous)
  • Low 180mA coil current draw
  • Mounting bracket fitted
  • 6mm stud terminals for heavy cable
  • Brand: Hella
SpecificationValue
BrandHella
Voltage24V
Pins4
FunctionNormally Open
Maximum Load80A peak current (60A continuous)
Coil Current Draw180mA
Mounting BracketYes
Terminals30 and 87 are 6mm studs
Hella Part No4RA 905 330-281
Part Number3062
