Hella High Capacity Relay 12V 4 Pin Normally Open 100A Continuous / 180A Peak 3061

Hella High Capacity Relay 12V 4 Pin Normally Open 100A Continuous / 180A Peak 3061

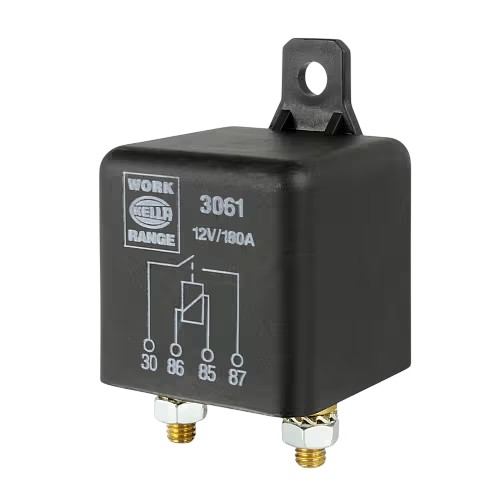

The Hella 3061 is a 12V 4-pin normally open high capacity relay rated to 100A continuous and 180A peak.

Brand: Hella  |  Voltage: 12V  |  Function: Normally Open  |  Maximum Load: 180A peak current (100A continuous)  |  Hella Part No: 4RA 905 330-041  |  Part No: 3061

Price:
NZ$ 63.29 excluding GST

NZ$ 72.78 including GST


or four payments of $18.20 with
Afterpay Payment Offer Learn More

Product Code:
HL 3061
Purchase Qty:



A normally open relay connects terminal 30 to 87 when its coil (85/86) is energised, so a low-current switch can safely control a high-current load such as driving lamps, horns, fans or pumps.

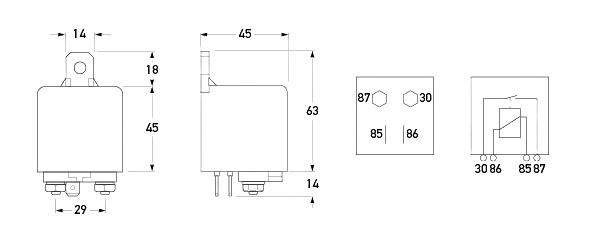

Wiring: 30 to fused battery positive, 87 to the load, 86 to the switched positive and 85 to earth. Terminals 30 and 87 are 6mm studs for heavy cable. Coil draw is 380mA, and a mounting bracket is fitted. Hella makes more than 100 million relays a year for OEMs including Ford, VW, GM and John Deere.

  • 12V 4-pin normally open high capacity relay
  • Rated to 180A peak current (100A continuous)
  • Low 380mA coil current draw
  • Mounting bracket fitted
  • 6mm stud terminals for heavy cable
  • Brand: Hella
SpecificationValue
BrandHella
Voltage12V
Pins4
FunctionNormally Open
Maximum Load180A peak current (100A continuous)
Coil Current Draw380mA
Mounting BracketYes
Terminals30 and 87 are 6mm studs
Hella Part No4RA 905 330-041
Part Number3061
