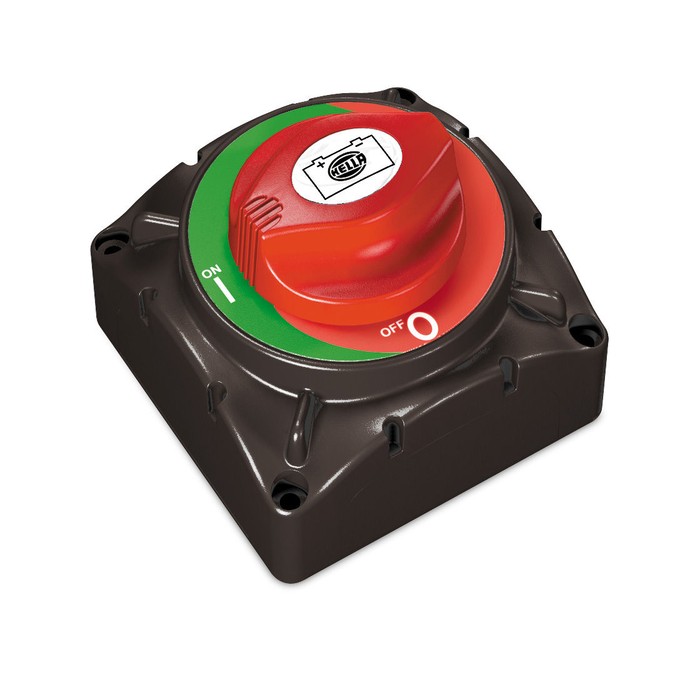

Hella Heavy Duty Battery Master Switch Off-On 600A 4720

The Hella 4720 is a heavy-duty off-on battery master switch for commercial vehicles, rated to 600A continuous and 2500A for 10 seconds.

Brand: Hella | Function: Off-On | Maximum Load: 2500A for 10 sec (12/24V) | Hella Part No: 6EK 998 540-062 | Part No: 4720

Price:

NZ$ 205.74 excluding GST

NZ$ 236.60 including GST

or four payments of $59.15 with
Learn More

Product Code:

HL 4720

Information
Features
Specifications

Built for trucks, buses and machinery, it has a sliding contact that cleans itself every time it is switched, keeping resistance low. It is sealed to IP56 against dust and powerful water jets.

Recess mounting needs an 85mm opening. Use heavy battery cable and terminals sized for the full current.

Heavy-duty off-on battery isolator
600A continuous, 2500A for 10 seconds
Self-cleaning sliding contact
IP56 protection
2 x 12mm stud terminals
Recess or surface mount (85mm opening)
Brand: Hella

Specification	Value
Brand	Hella
Function	Off-On
Maximum Load	2500A for 10 sec (12/24V)
Continuous Load	600A
Terminals	2 x 12mm studs
Protection	IP56
Mounting	Recess or surface, 85mm opening
Hella Part No	6EK 998 540-062
Part Number	4720
