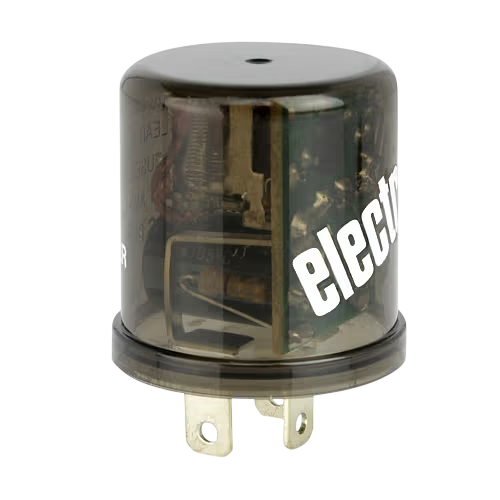

Hella Electronic Flasher Unit 12V 3 Pin High Capacity 1-10x21W 3027

Hella Electronic Flasher Unit 12V 3 Pin High Capacity 1-10x21W 3027

The Hella 3027 is a 12V 3-pin high capacity electronic flasher unit for indicators and hazard lights, handling loads of 1-10 x 21W.

Brand: Hella  |  Voltage: 12V  |  Maximum Load: 1-10 x 21W  |  Hella Part No: 4LZ 961 553-134  |  Part No: 3027

Price:
NZ$ 19.49 excluding GST

NZ$ 22.41 including GST


or four payments of $5.60 with
Afterpay Payment Offer Learn More

Product Code:
HL 3027
Purchase Qty:



High capacity electronic flasher unit. Complete with bracket. Designed to take up to 210W loads. Reverse polarity protection, polycarbonate cover and silver contacts. Clear audible signal.

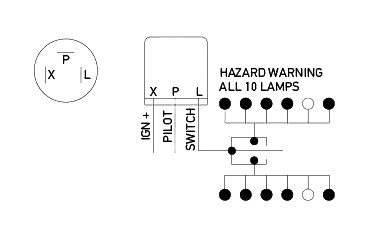

Terminals: 49/X flasher input (+), 49a/L output to the lamps or indicator switch, C/C1/P pilot lamp output (+). Check the pin layout against your old flasher before fitting.

  • 12V 3-pin electronic flasher unit
  • High capacity: 1-10 x 21W load
  • Suits indicator and hazard circuits
  • Pilot lamp (C) output terminal
  • Reverse polarity protected, silver contacts
  • Mounting bracket and clear audible signal
  • Brand: Hella
SpecificationValue
BrandHella
Voltage12V
Pins3
Maximum Load1-10 x 21W
Diameter37mm
Terminals49/X input, 49a/L output, C pilot
Hella Part No4LZ 961 553-134
Part Number3027
