Hella Diesel Pre-Heat Starter Switch 5 Position 4005

Hella Diesel Pre-Heat Starter Switch 5 Position 4005

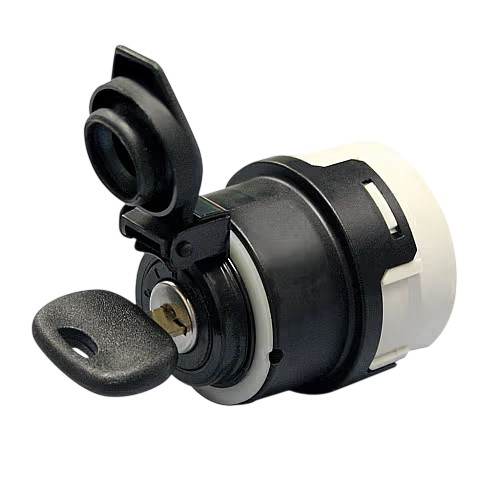

The Hella 4005 is a five-position diesel pre-heat starter switch (park, off, driving, pre-heat, start), supplied with two keys.

Brand: Hella  |  Positions: Park, off, driving, pre-heat, start  |  Hella Part No: 6JB 003 959-001  |  Part No: 4005

Price:
NZ$ 94.97 excluding GST

NZ$ 109.22 including GST


or four payments of $27.31 with
Afterpay Payment Offer Learn More

Product Code:
HL 4005
Purchase Qty:



The pre-heat position powers the glow plugs before cranking, then the start position engages the starter. The key can be removed in the park and off positions.

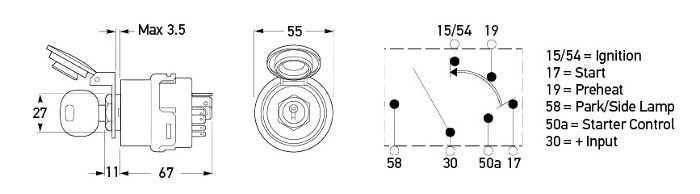

Mounts in a 26.5mm hole in panels up to 3.5mm thick. Contact ratings at 24V are park lamps 4A, driving 18A, pre-heat 35A and start 5A/35A. Use relays for any loads above these ratings.

  • Five positions: park, off, driving, pre-heat, start
  • Glow plug pre-heat position for diesel engines
  • Supplied with two keys
  • Key removes in park and off
  • 26.5mm mounting hole
  • Brand: Hella
SpecificationValue
BrandHella
PositionsPark, off, driving, pre-heat, start
Ratings @ 24VPark 4A, driving 18A, pre-heat 35A, start 5A/35A
Mounting Hole26.5mm
Panel ThicknessUp to 3.5mm
Keys2 supplied
Hella Part No6JB 003 959-001
Part Number4005
