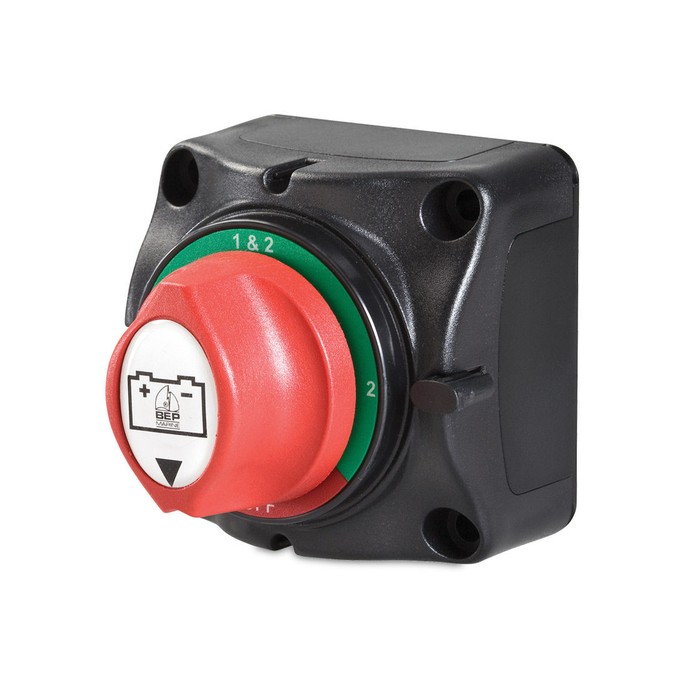

Hella Battery Selector Switch Off-B1-Both-B2 1000A 4723

Hella Battery Selector Switch Off-B1-Both-B2 1000A 4723

The Hella 4723 is a 4-position battery selector switch (Off, Battery 1, Both, Battery 2) rated to 200A continuous and 1000A peak.

Brand: Hella  |  Positions: Off, B1, Both, B2  |  Maximum Load: 1000A for 10 sec (12/24V)  |  Hella Part No: 2SL 980 834-001  |  Part No: 4723

Price:
NZ$ 119.32 excluding GST

NZ$ 137.22 including GST


or four payments of $34.31 with
Afterpay Payment Offer Learn More

Product Code:
HL 4723
Purchase Qty:



A selector switch lets you run from either of two batteries, combine them for starting or charging, or isolate both. That makes it ideal for dual-battery boats, caravans and 4WDs. It is sealed to IP56 against dust and powerful water jets.

Recess or surface mount. Use battery cable and terminals sized for the full current, and avoid switching through the Off position with the engine running, which can damage the alternator.

  • Off / Battery 1 / Both / Battery 2 selector
  • 1000A for 10 seconds, 200A continuous
  • Isolates both batteries in the Off position
  • IP56 protection
  • 3 x 5/16in stud terminals
  • Recess or surface mount
  • Brand: Hella
SpecificationValue
BrandHella
PositionsOff, B1, Both, B2
Maximum Load1000A for 10 sec (12/24V)
Continuous Load200A
Terminals3 x 5/16in studs
ProtectionIP56
MountingRecess or surface
Hella Part No2SL 980 834-001
Part Number4723
