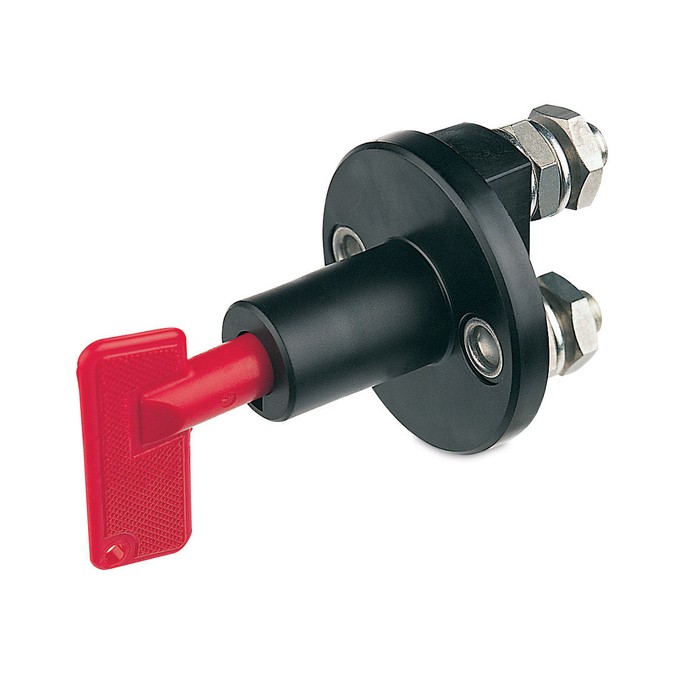

Hella Battery Master Switch Off-On with Removable Key 4650

Hella Battery Master Switch Off-On with Removable Key 4650

The Hella 4650 is an off-on battery master (isolator) switch with a removable plastic key, for cars and medium trucks.

Brand: Hella  |  Function: Off-On, removable key  |  Maximum Load: 12V: 1000A for 10 sec; 24V: 500A for 10 sec  |  Hella Part No: 6EK 002 843-052  |  Part No: 4650

Price:
NZ$ 51.94 excluding GST

NZ$ 59.73 including GST


or four payments of $14.93 with
Afterpay Payment Offer Learn More

Product Code:
HL 4650
Purchase Qty:



Turning the key off disconnects the battery, preventing theft and protecting against short circuits while the vehicle is parked or being worked on. It handles 1000A for up to 10 seconds at 12V (500A at 24V) for starting, and 150A continuously with 35mm² cable and ring terminals.

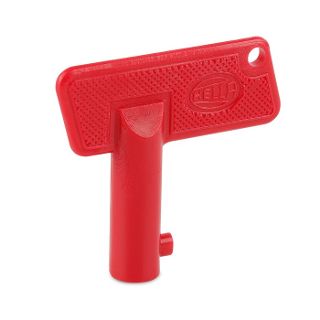

Mounts in a 24mm hole. Not designed for marine use. A spare key (Hella 4652) is available separately.

  • Off-on battery isolator with removable key
  • 1000A (12V) / 500A (24V) for 10 seconds
  • 150A continuous rating
  • 2 x 10mm stud terminals
  • Spare key available (4652)
  • Brand: Hella
SpecificationValue
BrandHella
FunctionOff-On, removable key
Maximum Load12V: 1000A for 10 sec; 24V: 500A for 10 sec
Continuous Load150A (80°C max, 35mm² cable)
Terminals2 x 10mm studs
Mounting Hole24mm
Spare Key4652
Hella Part No6EK 002 843-052
Part Number4650
