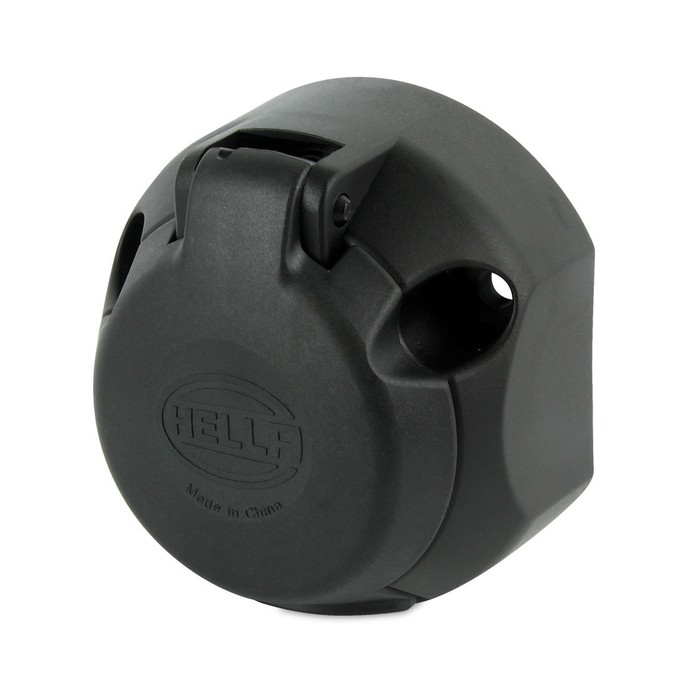

Hella 7 Pin Round Trailer Socket Plastic 4901

Hella 7 Pin Round Trailer Socket Plastic 4901

The Hella 4901 is a 7-pin round plastic trailer socket with a removable contact set, for fitting to the towing vehicle.

Brand: Hella  |  Type: 7 pole round  |  Hella Part No: 8JB 001 943-004  |  Part No: 4901

Price:
NZ$ 19.37 excluding GST

NZ$ 22.28 including GST


or four payments of $5.57 with
Afterpay Payment Offer Learn More

Product Code:
HL 4901
Purchase Qty:



Mount on the tow bar or rear of the vehicle to provide trailer lighting. The contact set removes for easy wiring.

A version with a disconnecting contact for rear fog lamps or parking sensors is available as 4901X. Standard wiring: 1 left indicators (yellow), 2 reversing (black), 3 earth (white), 4 right indicators (green), 5 service brakes or auxiliary (blue), 6 stop (red), 7 tail, number plate and clearance (brown). Where trailer brakes are not fitted, pin 5 can be used for auxiliaries.

  • 7-pin round trailer socket
  • Black plastic body
  • Removable contact set for easy wiring
  • Standard 7-pin round wiring
  • Suits 7-pin round plugs such as Hella 4902
  • Brand: Hella
SpecificationValue
BrandHella
Type7 pole round
BodyPlastic
Pin 1Left-hand indicators (Yellow)
Pin 2Reversing lamps (Black)
Pin 3Earth return (White)
Pin 4Right-hand indicators (Green)
Pin 5Service brakes (or auxiliary) (Blue)
Pin 6Stop lamps (Red)
Pin 7Tail, number plate and clearance lamps (Brown)
Hella Part No8JB 001 943-004
Part Number4901
