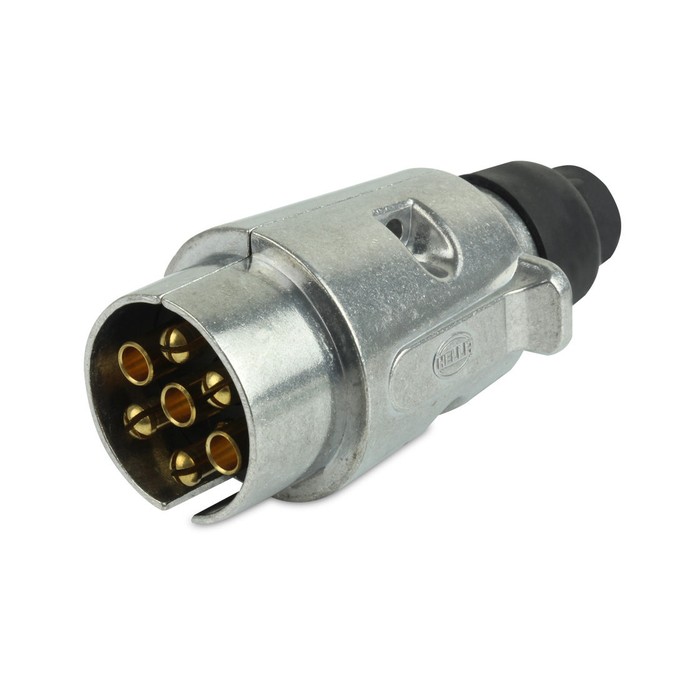

Hella 7 Pin Round Trailer Plug Metal 4911

Hella 7 Pin Round Trailer Plug Metal 4911

The Hella 4911 is a heavy-duty 7-pin round metal trailer plug with cable strain relief.

Brand: Hella  |  Type: 7 pole round  |  Hella Part No: 8JA 001 918-005  |  Part No: 4911

Price:
NZ$ 18.38 excluding GST

NZ$ 21.14 including GST


or four payments of $5.29 with
Afterpay Payment Offer Learn More

Product Code:
HL 4911
Purchase Qty:



A solid metal body stands up to knocks and dragging better than plastic, making it suited to work trailers and heavy use. Fit to the trailer cable to connect to the vehicle's 7-pin round socket.

Standard wiring: 1 left indicators (yellow), 2 reversing (black), 3 earth (white), 4 right indicators (green), 5 service brakes or auxiliary (blue), 6 stop (red), 7 tail, number plate and clearance (brown). Where trailer brakes are not fitted, pin 5 can be used for auxiliaries.

  • 7-pin round trailer plug
  • Solid metal body for heavy use
  • Cable strain relief
  • Standard 7-pin round wiring
  • Suits 7-pin round sockets
  • Brand: Hella
SpecificationValue
BrandHella
Type7 pole round
BodyMetal
Pin 1Left-hand indicators (Yellow)
Pin 2Reversing lamps (Black)
Pin 3Earth return (White)
Pin 4Right-hand indicators (Green)
Pin 5Service brakes (or auxiliary) (Blue)
Pin 6Stop lamps (Red)
Pin 7Tail, number plate and clearance lamps (Brown)
Hella Part No8JA 001 918-005
Part Number4911
