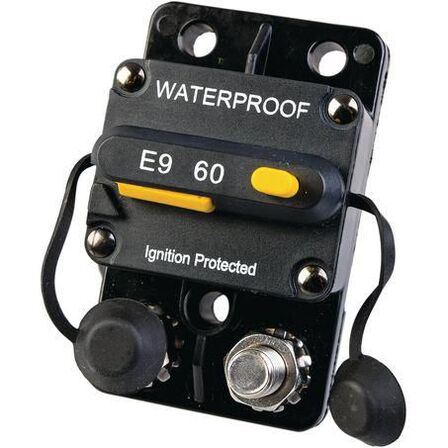

Circuit Breaker 60AMP

The OEX 60A Type III heavy-duty manual-reset circuit breaker — a switchable, waterproof breaker for protecting high-current 12/24/48V circuits.

Type: Type III, manual reset (switchable) | Rating: 60A | Voltage: Up to 72VDC | Ingress: IP67

Price:

NZ$ 111.86 excluding GST

NZ$ 128.64 including GST

or four payments of $32.16 with
Learn More

Product Code:

IN ACX1844

Information
Features
Specifications

A professional-grade Type III heavy-duty circuit breaker that protects high-current circuits — winches, inverters, dual-battery and auxiliary feeds — where a fuse or lighter breaker would be insufficient. If the circuit is overloaded or short-circuits, the breaker trips; it's then reset by hand, and the switchable design also lets you toggle it off to isolate the circuit.

Rated 60A with a 72VDC maximum, so it suits 12V, 24V and 48V systems. Fitted with stainless steel 9.5mm terminal studs and rubber stud caps, in an IP67 waterproof and dustproof housing for under-bonnet, marine and exposed installations.

60A Type III heavy-duty circuit breaker
Manual reset, switchable — doubles as a circuit isolator
Up to 72VDC — suits 12V, 24V and 48V systems
Stainless steel 9.5mm terminal studs
Rubber stud caps for terminal protection
IP67 waterproof and dustproof housing
For automotive, marine, caravan, 4WD and industrial use

Specification	Value
Type	Type III, heavy-duty manual reset (switchable)
Amperage	60A
Max Voltage	72VDC
Terminals	Stainless steel 9.5mm studs
Ingress Rating	IP67
Other	Rubber stud caps
