Information

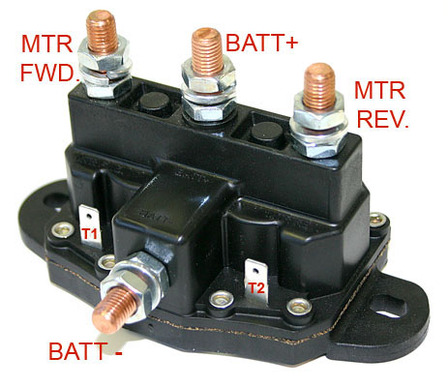

COLE HERSEE MOTOR REVERSING SOLENOID
12V 75/125/150A

* Double Pole Double Throw
* F Bracket
* Copper Contacts
* Large Studs 5/16 - 24 UNF
* Coil Terminal Blades
* Common Ground

2 WIRE WINCHES ONLY
To suit applications such as hoists, winches, windlasses, ATVs &
snowplow blades etc.

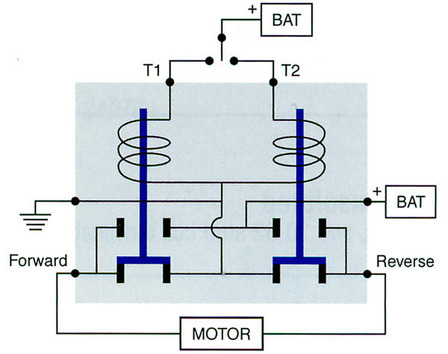

Two solenoids in one for space saving and simpler wiring.
The two integral solenoids provide dynamic braking for
permanent magnet motors when neither coil is energised.

* 75A make and break
* Max On time 5 minutes

* 125A make and break
* Max On time 30 seconds

* 150A make and break
* Max On time 0.5 seconds

Allow 5 minutes Off after max on time
Maximum operating voltage 14V DC
Cycle life 10,000 cycles at 5 seconds On,
25 seconds Off
