VICTRON SMART SHUNT ( BATTERY MONITOR 300A )

Name: VICTRON SMART SHUNT ( BATTERY MONITOR 300A )
Brand: YOUNGS AUTOMOTIVE LTD
SKU: VR SHU050130050

The SmartShunt is an intelligent battery monitor providing detailed usage insights via the VictronConnect app. Compatible with any battery type, it's available in IP-rated versions and easily (retro)fitted without cable clutter.

Price:

NZ$ 130.25 excluding GST

NZ$ 149.79 including GST

Product Code:

VR SHU050130050

Information
Specifications
Links

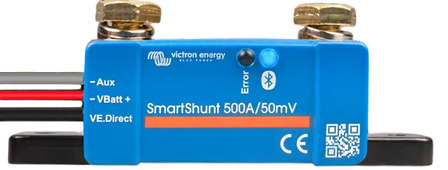

The SmartShunt IP65 is an all-in-one battery monitor, only without a display. Your phone acts as the display. The SmartShunt IP65 is water resistant and is available in a 300 A, 500 A, 1000 A or 2000 A version. The SmartShunt IP65 connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively, the SmartShunt IP65 can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable. The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The SmartShunt is equipped with Bluetooth, has a VE.Direct port and an auxiliary connection that can be used to monitor a second battery, for midpoint monitoring, or to connect a temperature sensor.

SmartShunt IP65 300 A / 500 A / 1000 A / 2000 A

Supply voltage range: 6.5 - 70 VDC

Current draw: < 1 mA

Input voltage range, auxiliary battery: 6.5 - 70 VDC

Battery capacity (Ah): 1 - 9999 Ah

Operating temperature range: -40 +50 °C (-40 – 120 °F)

Measures voltage of second battery, or temperature, or midpoint: Yes

Temperature measurement range: -20 +50 °C

VE.Direct communication port: Yes

SmartShunt IP65
