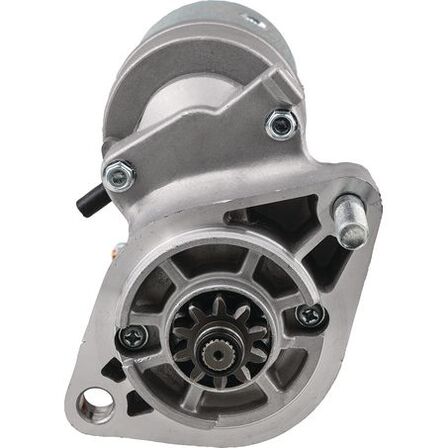

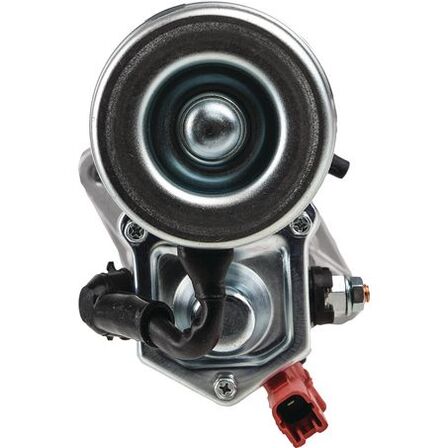

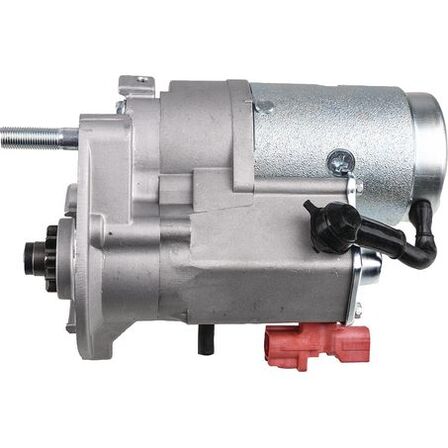

STARTER 12V 10T SUIT TOYOTA

STARTER 12V 10T SUIT TOYOTA
OEX Starter Motor 12V 10Th CW Denso Style - Replaces 2.7kW Denso Starter.
Price:
NZ$ 360.80 excluding GST

NZ$ 414.92 including GST
IN DXS575

• Start wire terminal suitable for both large and small harness connector.
• Interchangeable with 11 Tooth version.
• Replaces 2.7kW Denso starter.

Part No. DXS575
Type STARTER MOTOR
Brand OEX
Unit of Measure EACH
Description OEX Starter Motor 12V 10Th CW Denso Style - Replaces 2.7kW Denso Starter.
Warranty 3yr Passenger 1yr Commercial
Flange Diameter 82mm
Mount Centres A 130mm
Mount Hole Diameter M12 / 14
Number of Teeth 10
Overall Length 240mm
Pinion at Rest 18mm
Pinion Diameter 38mm
Power Rating 2.2kW
Rotation CW
Suits Unit Make Denso
Voltage 12
Note Start wire terminal suitable for both large and small harness connector. Interchangeable with 11 Tooth version. Replaces 2.7kW Denso starter.
New / Reman. New
Starter Mount Type 2 Hole
Wet / Dry Clutch Dry
VEHICLE DAIHATSU DELTA V138 Di 3.0L 1KD-FV DOHC 16v Diesel Direct Inj. 4cyl 85kW Cab Chassis RWD [10/03 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA 4 RUNNER,HILUX SURF KDN215 IV D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 125kW SUV AWD [10/02 - 08/05] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA CAMROAD KDY231 DiD 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Cab Chassis RWD [09/07 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA CAMROAD KDY280 3.0L 1KD-FTV Diesel Cab Chassis RWD [08/04 - 07/07] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA CAMROAD,DYNA,TOYOACE KDY220,KDY230,KDY250 D4d 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Cab Chassis RWD [08/01 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA COMMUTER,HIACE KDH202,KDH212,KDH222 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [09/06 - 06/14] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA COMMUTER,HIACE KDH203R,KDH221,KDH22... V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [08/04 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA COMMUTER,HIACE KDH205,KDH225,KDH227 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 94kW Bus AWD [08/04 - 09/07] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA COMMUTER,HIACE KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Bus RWD [05/10 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA DYNA KDY221,KDY231 D4d 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Cab Chassis RWD [10/09 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA DYNA KDY241 D4d 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Bus RWD [09/06 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA DYNA KDY270,KDY280 D4d 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Cab Chassis AWD [08/04 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA DYNA KDY271 D4d 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Cab Chassis AWD [09/06 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA DYNA KDY290 D4d 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus AWD [08/04 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA GRANVIA,HIACE REGIUS KCH10 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 103kW MPV RWD [08/95 - 12/02] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA GRANVIA,HIACE REGIUS KCH10 TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW MPV RWD [08/95 - 12/04] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA GRANVIA,HIACE REGIUS KCH16 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 103kW MPV AWD [08/95 - 12/02] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA GRANVIA,HIACE REGIUS KCH16 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW MPV AWD [08/95 - 05/02] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Van RWD [06/04 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [09/06 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HIACE KDH200,KDH223 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Van RWD [01/05 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HIACE KDH201,KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Van RWD [08/07 - 01/19] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HIACE KDH201,KDH221 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [11/06 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HIACE KDH206 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 100kW Van AWD [09/07 - 11/08] STARTER MOTOR 1
VEHICLE TOYOTA HIACE KDH206 V D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van AWD [11/08 - 05/19] STARTER MOTOR 1
VEHICLE TOYOTA HIACE KZH132 IV D 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW Van RWD [08/95 - 08/04] STARTER MOTOR 1
VEHICLE TOYOTA HIACE,REGIUS ACE KCH40G,KZH100,KZH110... IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW Bus RWD [08/93 - 08/04] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HIACE,REGIUS ACE KDH205,KDH225 V D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 94kW Van AWD [08/04 - 09/07] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HIACE,REGIUS ACE KZH106,KZH116,KZH126 IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW Bus AWD [08/93 - 08/04] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HIACE,REGIUS ACE KZH106G,KZH138V IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW Van AWD [08/95 - 07/04] STARTER MOTOR 1
VEHICLE TOYOTA HIACE,REGIUS KCH40W IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 104kW Bus RWD [08/99 - 05/02] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HIACE,REGIUS KCH46 IV TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 104kW Bus AWD [04/97 - 05/02] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KDN185 III TD 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 125kW SUV AWD [07/00 - 08/05] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Cab Chassis RWD [02/05 - 08/06] STARTER MOTOR 1
VEHICLE TOYOTA HILUX KUN16 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility RWD [08/06 - 05/15] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KUN16,KUN36 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility RWD [08/05 - 05/15] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KUN16R VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis RWD [02/05 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KUN25 VII D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Utility AWD [03/05 - 05/15] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KUN25 VII D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Utility AWD [12/07 - 05/15] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KUN25R VII D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 88kW Utility AWD [06/06 - 05/15] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Cab Chassis AWD [02/05 - 08/06] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility AWD [03/05 - 05/15] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis AWD [02/05 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility AWD [08/05 - 09/15] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KZN165 VI TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 85kW Utility AWD [11/01 - 04/05] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KZN165R VI TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 85kW Cab Chassis AWD [12/99 - 04/05] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KZN185 III TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 108kW SUV AWD [08/98 - 06/00] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX KZN185 III TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [12/95 - 07/98] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX SURF KZN130,KZN130G,KZN13... II TDi 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [08/93 - 10/95] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA HILUX,TACOMA KDN190 VI D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 75kW Utility AWD [11/01 - 07/05] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER 90,LAND CRUISER PRADO,PRADO KDJ90,KDJ95 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 125kW SUV AWD [02/00 - 08/02] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER 90,LAND CRUISER PRADO,PRADO KDJ90W,KDJ95W D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW SUV AWD [08/00 - 08/02] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER 90,LAND CRUISER PRADO,PRADO KZJ90,KZJ95 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 103kW SUV AWD [04/95 - 07/00] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER 90,LAND CRUISER PRADO,PRADO KZJ90R,KZJ90W,KZJ95R... TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 92kW SUV AWD [04/96 - 12/02] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER 90,LAND CRUISER PRADO,PRADO KZJ95 TD 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [03/00 - 02/03] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER GDJL76R,GDJL78R D-4D 3.5t 2.8L 1GD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 150kW SUV AWD [09/23 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER KZJ71,KZJ78 PRADO IMPORT 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 92kW SUV AWD [05/93 - 05/96] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER PRADO KDJ120,KDJ125 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 122kW SUV AWD [07/04 - 08/09] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER PRADO KDJ121,KDJ125 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 127kW SUV AWD [09/02 - 12/10] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER PRADO KDJ125 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW SUV AWD [09/02 - 08/09] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER PRADO KDJ150,KDJ155 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 127kW SUV AWD [08/09 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER PRADO KDJ150R,KDJ155R D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 140kW SUV AWD [08/09 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER PRADO KZJ120 D 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 92kW SUV AWD [09/02 - 07/09] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA LAND CRUISER PRADO KZJ120R D 3.0L 1KZ-TE SOHC 8v Turbo Diesel 4cyl 96kW SUV AWD [08/05 - 07/09] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA REGIUS ACE KDH200 D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Bus RWD [08/04 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA REGIUS ACE KDH200 D-4D 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [08/04 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA REGIUS ACE KDH201,KDH211,KDH221 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van RWD [08/04 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA REGIUS ACE KDH206 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Bus AWD [08/04 ON] STARTER MOTOR 1
VEHICLE TOYOTA REGIUS ACE KDH206 D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Van AWD [08/04 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA TOYOACE KDY220,KDY230 DiD 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Cab Chassis RWD [08/04 - 09/07] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA TOYOACE KDY221,KDY231,KDY241 DiD 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Cab Chassis RWD [09/07 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA TOYOACE KDY271,KDY281 DiD 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 106kW Cab Chassis AWD [09/07 ON] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
VEHICLE TOYOTA TOYOACE KDY290V D4d 2.5L 2KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 80kW Van RWD [08/04 - 07/07] STARTER MOTOR 1 10 tooth and 11 tooth units are interchangeable.
