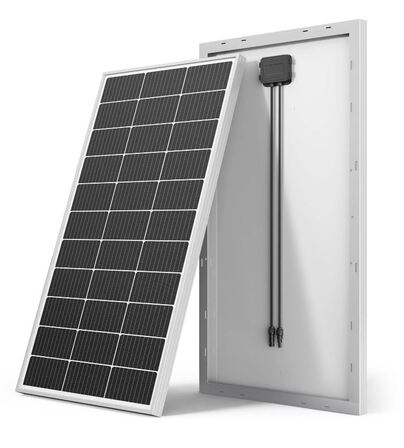

SOL/PANEL 195W 1480X670X35 SHINGLE PERC MONO 18V

SOL/PANEL 195W 1480X670X35 SHINGLE PERC MONO 18V
195W Solar Panel (PERC MONO)
Price:
NZ$ 466.20 excluding GST

NZ$ 536.13 including GST
LU 195WPERC12-M
Out Of Stock - Ring (03)-548 9014 And We Can Backorder More

PERC MONO 10BB (busbar) CELL is a new breakthrough in solar cell technology. This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency.

This high power, high-density modules are very robust and suited to mobile vehicles including Caravan, RV and Boating. The 35mm frame gives the panels additional strength in mobile application. 10BB means there are ten busbars in each solar cell. The distance for the PV Cells to reach each busbar is less, outcome being a high efficiency cell structure.

Maximum Power (Pmax) 195W
Voltage (Vmp) 19.7V
Current (Imp) 9.90A
Voltage (Voc) 21.76V
Current (Isc) 10.45A
Module Efficiency 19.75%
Cell Type MONO PERC

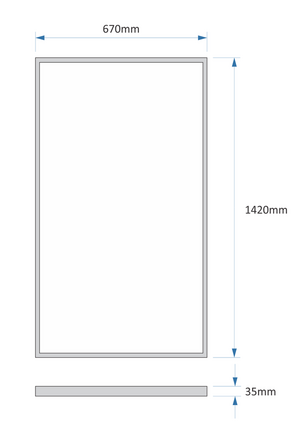

Module Dimensions (mm) 670 X 1420 X 35
Weight (Kg) 11.0
