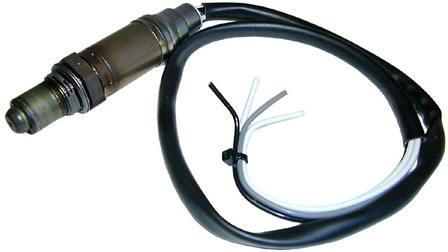

OXYGEN SENSOR - UNIVERSAL (4)

Features

Standard Zirconia Type Sensor
(NOT for Planar/Titania replacement)
- Heater Circuit Resistance at 20 deg C - Approx 3.4 Ohms (+/- O.4 Ohm)
18 Watt Rating (Insulated Heater Circuit)
(See 690258986505 for different Resistance Heater Circuit)
Use to replace 4 Wire Insulated Sensors witn heater circuit resistance between 3-6 Ohms ONLY.
Planar Sensors with higher Heater Resistance switches faster than Standard Zirconia types.
For Planar Sensor with Higher resistance (7-15 Ohms), use 690258986602

Head Diameter: 15.00 approx. Note for smaller diameter head version required on
some applications (eg; some Subaru), use 690258005732 sensor below (12.0mm approx).
Number of Openings: 6
Thread Diameter: 18.0mm

Wiring:
Black - Signal
Grey - Ground
White x 2 - Heater
(Note: Refer to Instruction sheet supplied with new Bosch Sensor for matching wires to OEM
colour wires. For 0TK8N-5A2 and 0TK8N-5A5 type Kia and Hyundai Sensors, match as follows:
- OEM White & Grey (Heater) = 2 x White on Bosch
- OEM Yellow (Signal) = Black on Bosch
- OEM Black (Ground) = Grey on Bosch

NOTE: DO NOT Solder Connections on these Universal
Oxygen Sensors !!! The Weatherproof Posi-lock Connector
supplied in the Kit MUST always be used.

Applications

Suits:
Aston Martin / Audi
Bentley / Buick
Chevrolet / Chrysler
Citreon / Daihatsu
Dodge / Ferrari
Fiat / Ford
Honda / Holden
Jaguar / Jeep
Kia / Lancia
Mazda / Mercedes Benz
MG / Mitsubishi
Nissan / Opel
Peugeot / Plymouth
Proton / Renault
Rolls Royce / Rover
Seat / Skoda
Subaru / Suzuki
Toyota / Vauxhall
Volvo / VW

Detailed Vehicle Applications
