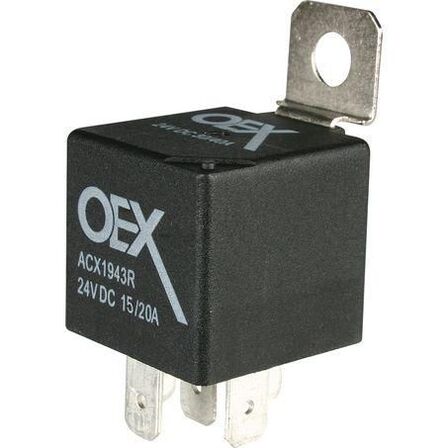

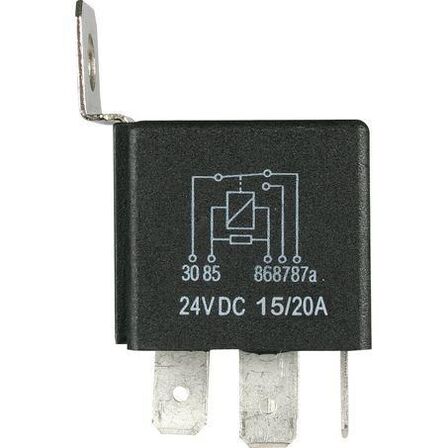

MINI RELAY 24V 15/20A 5 PIN

Name: MINI RELAY 24V 15/20A 5 PIN
Brand: YOUNGS AUTOMOTIVE LTD
SKU: IN ACX1943RBL

OEX Mini Relay 24V Change Over 15/20A 5 Pin - Resistor Protected, Sealed

Price:

NZ$ 13.05 excluding GST

NZ$ 15.01 including GST

Product Code:

IN ACX1943RBL

Features

• 24V
• 15/20 Amp

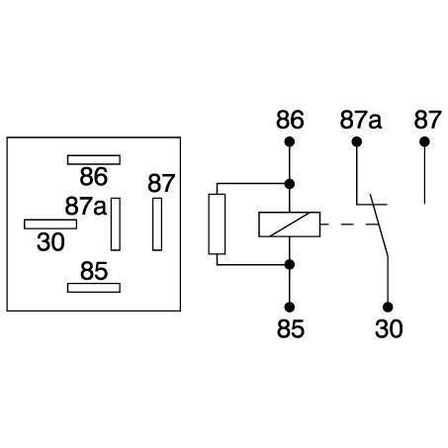

• Change over contacts
• Sealed, IP67
• Resistor protected

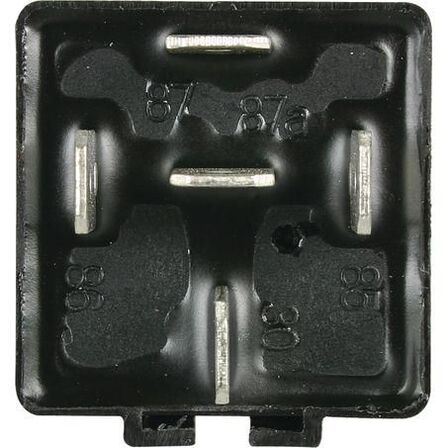

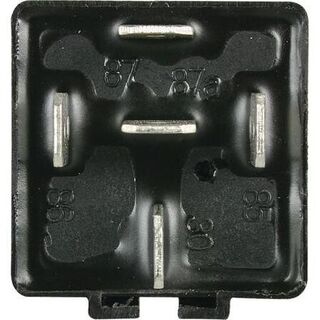

• 5 blade terminals
• Removable mounting tab

Part No.	ACX1943RBL
Type	RELAY
Brand	OEX
Unit of Measure	EACH
Description	OEX Mini Relay 24V Change Over 15/20A 5 Pin - Resistor Protected, Sealed
Warranty	One Year
Number of Terminals	5
Power Rating [Amp]	15/20
Voltage	24
Relay Action	Change Over
Spike Protection	Resistor
Type (Mini / Micro)	Mini
Contact Material	Silver Tin Oxide
