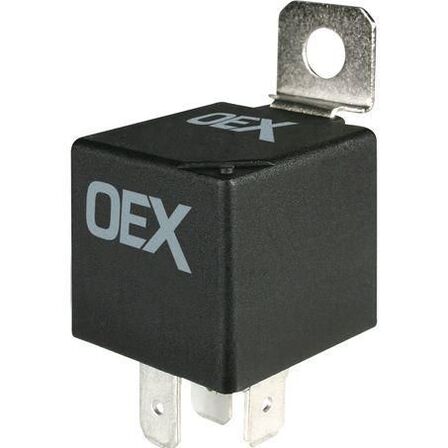

MINI RELAY 12V 40A 5 PIN * BLISTER PACK *

Name: MINI RELAY 12V 40A 5 PIN *** BLISTER PACK ***
Brand: YOUNGS AUTOMOTIVE LTD
SKU: IN ACX1940RBL

OEX Mini Relay 12V Normally Open 40A - Resistor Protected, Sealed

Price:

NZ$ 14.30 excluding GST

NZ$ 16.45 including GST

Product Code:

IN ACX1940RBL

Features

• 12V
• 40 Amp
• Standard normally open contact
• Resistor protected
• Sealed IP67
• 5 Blade terminals
• Removable mounting tab

Part No.	ACX1940RBL
Type	RELAY
Brand	OEX
Unit of Measure	EACH
Description	OEX Mini Relay 12V Normally Open 40A - Resistor Protected, Sealed
Warranty	One Year
Number of Terminals	5
Power Rating [Amp]	40
Voltage	12
Relay Action	Normally Open
Spike Protection	Resistor
Type (Mini / Micro)	Mini
Contact Material	Silver Tin Oxide
